CService Class Reference

The service interface. More...

#include <Service.h>

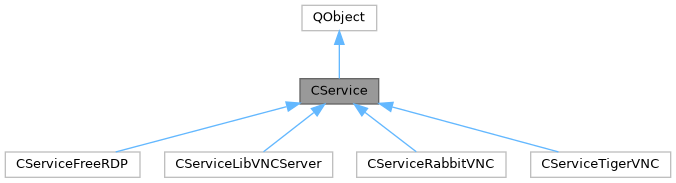

Inheritance diagram for CService:

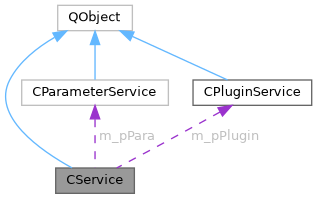

Collaboration diagram for CService:

Public Member Functions
	CService (CPluginService *plugin)
virtual int	Init ()
	Load parameters, support non-Qt event loop.
virtual int	Clean ()
CParameterService *	GetParameters ()
virtual int	LoadConfigure (const QString &szDir=QString())
virtual int	SaveConfigure (const QString &szDir=QString())

Protected Slots
virtual void	slotProcess ()
	Support non-Qt event loop.

Protected Member Functions
virtual int	OnInit ()=0
	Init service.
virtual int	OnClean ()=0
	Clean service.
virtual int	OnProcess ()
	Process service.

Protected Attributes
CParameterService *	m_pPara
CPluginService *	m_pPlugin

Detailed Description

The service interface.

by specific protocol implement. The interface only is implemented and used by plugin. Support non-Qt event loop. see: Init(), slotProcess(). If don't use non-Qt event loop. then OnInit() return > 0

Implement the interface:

• OnInit()
• OnProcess()
• OnClean()

See also

CPluginServiceThread CPluginService

Definition at line 37 of file Service.h.

Constructor & Destructor Documentation

CService()

CService::CService ( CPluginService * plugin )

explicit

Definition at line 13 of file Service.cpp.

~CService()

CService::~CService ( )

virtual

Definition at line 19 of file Service.cpp.

Member Function Documentation

Clean()

int CService::Clean ( )

virtual

Definition at line 47 of file Service.cpp.

GetParameters()

CParameterService * CService::GetParameters

(

)

Definition at line 87 of file Service.cpp.

Init()

int CService::Init ( )

virtual

Load parameters, support non-Qt event loop.

See also

OnInit()

Definition at line 24 of file Service.cpp.

LoadConfigure()

int CService::LoadConfigure ( const QString & szDir = QString() )

virtual

Definition at line 92 of file Service.cpp.

OnClean()

virtual int CService::OnClean ( )

protectedpure virtual

Clean service.

Returns

Implemented in CServiceFreeRDP, CServiceLibVNCServer, CServiceRabbitVNC, and CServiceTigerVNC.

OnInit()

virtual int CService::OnInit ( )

protectedpure virtual

Init service.

Returns

• < 0: error
• = 0: Use OnProcess (non-Qt event loop)
• > 0: Don't use OnProcess (qt event loop)

Implemented in CServiceFreeRDP, CServiceLibVNCServer, CServiceRabbitVNC, and CServiceTigerVNC.

OnProcess()

int CService::OnProcess ( )

protectedvirtual

Process service.

Returns

• < 0: error or stop
• >= 0: Call interval. Unit: milliseconds

Reimplemented in CServiceLibVNCServer.

Definition at line 81 of file Service.cpp.

SaveConfigure()

int CService::SaveConfigure ( const QString & szDir = QString() )

virtual

Definition at line 124 of file Service.cpp.

slotProcess

void CService::slotProcess ( )

protectedvirtualslot

Support non-Qt event loop.

Definition at line 61 of file Service.cpp.

Member Data Documentation

m_pPara

CParameterService* CService::m_pPara

protected

Definition at line 116 of file Service.h.

m_pPlugin

CPluginService* CService::m_pPlugin

protected

Definition at line 117 of file Service.h.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Service/Service.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Service/Service.cpp
