类 CParameterPluginUI 继承关系图:

[图例]

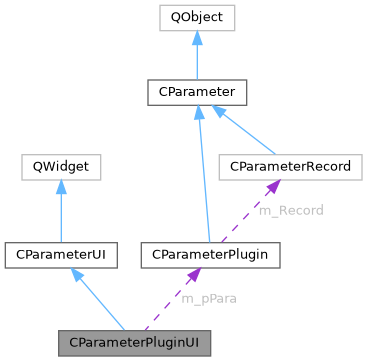

CParameterPluginUI 的协作图:

[图例]

Public 槽
void	on_cbEnableViewPassword_clicked (bool checked)

void	on_pbEncryptKey_clicked ()

Public 槽继承自 CParameterUI
virtual void	slotSetParameter (CParameter *pParameter)
	[override functions]

virtual void	slotAccept ()
	接受参数。不调用 CheckValidity

Public 成员函数
	CParameterPluginUI (QWidget *parent=nullptr)

virtual int	SetParameter (CParameter *pParameter) override
	[override functions]

virtual bool	CheckValidity (bool validity) override
	检查参数的有效性

virtual int	Accept () override
	接受参数。如果需要，可先调用 CheckValidity

Public 成员函数继承自 CParameterUI
	CParameterUI (QWidget *parent=nullptr)

Private 槽
void	on_cbSystemCredential_checkStateChanged (const Qt::CheckState &state)

void	on_pbDesktopShortcutsDisable_clicked ()

void	on_pbDesktopShortcutsRestore_clicked ()

void	on_cbCaptureAllKeyboard_checkStateChanged (const Qt::CheckState &arg1)

Private 属性
Ui::CParameterPluginUI *	ui

CParameterPlugin *	m_pPara

详细描述

在文件 ParameterPluginUI.h 第 11 行定义.

构造及析构函数说明

◆ ~CParameterPluginUI()

CParameterPluginUI::~CParameterPluginUI ( )

virtual

在文件 ParameterPluginUI.cpp 第 31 行定义.

成员函数说明

◆ Accept()

int CParameterPluginUI::Accept ( )

overridevirtual

接受参数。如果需要，可先调用 CheckValidity

void CDlgSetFreeRDP::on_pbOk_clicked()
{
    int nRet = 0;

    if(!ui->wNet->CheckValidity(true)) {
        ui->tabWidget->setCurrentIndex(0);
        return;
    }
    if(!m_pProxyUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pProxyUI);
        return;
    }
    if(!m_pRecordUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pRecordUI);
        return;
    }

    m_pSettings->SetName(ui->leName->text());

    // Server
    m_pSettings->SetDomain(ui->leDomain->text());
    nRet = ui->wNet->Accept();
    if(nRet) return;

    nRet = m_pProxyUI->Accept();
    if(nRet) return;

    nRet = m_pRecordUI->Accept();
    if(nRet) return;

    m_pSettings->SetOnlyView(ui->cbOnlyView->isChecked());
    m_pSettings->SetClipboard(ui->cbClipboard->isChecked());
    m_pSettings->SetShowServerName(ui->cbShowServerName->isChecked());

    // Display
    m_pSettings->SetUseMultimon(ui->cbAllMonitor->isChecked());
    QString szSize = ui->cbDesktopSize->currentText();
    int index = szSize.indexOf("×");
    if(-1 < index)
    {
        UINT32 width = szSize.left(index).toInt();
        UINT32 height = szSize.right(szSize.length() - index - 1).toInt();
        m_pSettings->SetDesktopWidth(width);
        m_pSettings->SetDesktopHeight(height);
    }
    m_pSettings->SetColorDepth(ui->cbColorDepth->currentData().toInt());
    m_pSettings->SetReconnectInterval(ui->sbReconnect->value());

    // Redirection
    m_pSettings->SetRedirectionPrinter(ui->cbPrinter->isChecked());
    m_pSettings->SetEnableLocalInputMethod(ui->cbEnableLocalInputMethod->isChecked());
    if(HasAudioOutput()) {
        CParameterFreeRDP::RedirecionSoundType tRdirectionSound
            = CParameterFreeRDP::RedirecionSoundType::Disable;
        if(ui->rbAudioDisable->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Disable;
        else if(ui->rbAudioLocal->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Local;
        else if(ui->rbAudioRemote->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Remote;
        m_pSettings->SetRedirectionSound(tRdirectionSound);
    } else {
        m_pSettings->SetRedirectionSound(
            CParameterFreeRDP::RedirecionSoundType::Disable);
    }
    m_pSettings->SetRedirectionSoundParameters(ui->leRdpSnd->text());
    if(HasAudioInput())
        m_pSettings->SetRedirectionMicrophone(ui->cbAudin->isChecked());
    else
        m_pSettings->SetRedirectionMicrophone(false);
    m_pSettings->SetRedirectionMicrophoneParameters(ui->leAudin->text());

    QStringList lstDrives;
    //获取选中的行，默认获取选中行的第一列数据（0），列的索引值和上面一样0、1、2、3......
    QModelIndexList selected = ui->tvDrive->selectionModel()->selectedRows(0);
    QList<QModelIndex>::iterator it;
    QModelIndex modelIndex;
    QString szPath;
    for (it = selected.begin(); it != selected.end(); ++it)
    {
        modelIndex = *it;
        szPath = m_pFileModel->filePath(modelIndex);
        if(!szPath.isEmpty())
            lstDrives.append(szPath);
    }
    m_pSettings->SetRedirectionDrives(lstDrives);

    // Security
    m_pSettings->SetNegotiateSecurityLayer(ui->cbSecurityEnable->isChecked());
    uint security = 0;
    if(ui->cbSecurityRDP->isChecked())
        security |= CParameterFreeRDP::Security::RDP;
    if(ui->cbSecurityTls->isChecked())
        security |= CParameterFreeRDP::Security::TLS;
    if(ui->cbSecurityNLA->isChecked())
        security |= CParameterFreeRDP::Security::NLA;
    if(ui->cbSecurityNlaExt->isChecked())
        security |= CParameterFreeRDP::Security::NLA_Ext;
    if(ui->cbSecurityRDSTLS->isChecked())
        security |= CParameterFreeRDP::Security::RDSTLS;
    if(ui->cbSecurityRDSAAD->isChecked())
        security |= CParameterFreeRDP::Security::RDSAAD;
    m_pSettings->SetSecurity((CParameterFreeRDP::Security)security);

    // Tls version
    if(ui->rbTls1_0->isChecked())
        m_pSettings->SetTlsVersion(TLS1_VERSION);
    else if(ui->rbTls1_1->isChecked())
        m_pSettings->SetTlsVersion(TLS1_1_VERSION);
    else if(ui->rbTls1_2->isChecked())
        m_pSettings->SetTlsVersion(TLS1_2_VERSION);
    else if(ui->rbTls1_3->isChecked())
        m_pSettings->SetTlsVersion(TLS1_3_VERSION);

    // Connect type
    m_pSettings->SetConnectType(ui->cbConnectType->currentData().toUInt());
    // Performance flags
    UINT32 performanceFlags = 0;
    if(!ui->cbDesktopBackground->isChecked())
        performanceFlags |= PERF_DISABLE_WALLPAPER;
    if(!ui->cbWindowDrag->isChecked())
        performanceFlags |= PERF_DISABLE_FULLWINDOWDRAG;
    if(!ui->cbMenuAnims->isChecked())
        performanceFlags |= PERF_DISABLE_MENUANIMATIONS;
    if(!ui->cbThemes->isChecked())
        performanceFlags |= PERF_DISABLE_THEMING;
    if(ui->cbFontSmoothing->isChecked())
        performanceFlags |= PERF_ENABLE_FONT_SMOOTHING;
    if(ui->cbDesktopCompositing->isChecked())
        performanceFlags |= PERF_ENABLE_DESKTOP_COMPOSITION;
    m_pSettings->SetPerformanceFlags(performanceFlags);

    accept();
}

返回: 成功返回 0 。其它值为失败。

实现了 CParameterUI.

在文件 ParameterPluginUI.cpp 第 44 行定义.

◆ CheckValidity()

bool CParameterPluginUI::CheckValidity ( bool validity )

overridevirtual

检查参数的有效性

参数

validity

标志是否检查参数

true: 检查参数
false: 不检查参数

重载 CParameterUI .

在文件 ParameterPluginUI.cpp 第 36 行定义.

◆ on_cbCaptureAllKeyboard_checkStateChanged

void CParameterPluginUI::on_cbCaptureAllKeyboard_checkStateChanged ( const Qt::CheckState & arg1 )

privateslot

在文件 ParameterPluginUI.cpp 第 188 行定义.

◆ on_cbEnableViewPassword_clicked

void CParameterPluginUI::on_cbEnableViewPassword_clicked ( bool checked )

slot

在文件 ParameterPluginUI.cpp 第 80 行定义.

◆ on_cbSystemCredential_checkStateChanged

void CParameterPluginUI::on_cbSystemCredential_checkStateChanged ( const Qt::CheckState & state )

privateslot

在文件 ParameterPluginUI.cpp 第 161 行定义.

◆ on_pbDesktopShortcutsDisable_clicked

void CParameterPluginUI::on_pbDesktopShortcutsDisable_clicked ( )

privateslot

在文件 ParameterPluginUI.cpp 第 166 行定义.

◆ on_pbDesktopShortcutsRestore_clicked

void CParameterPluginUI::on_pbDesktopShortcutsRestore_clicked ( )

privateslot

在文件 ParameterPluginUI.cpp 第 177 行定义.

◆ on_pbEncryptKey_clicked

void CParameterPluginUI::on_pbEncryptKey_clicked ( )

slot

在文件 ParameterPluginUI.cpp 第 85 行定义.

◆ SetParameter()

int CParameterPluginUI::SetParameter ( CParameter * pParameter )

overridevirtual

[override functions]

设置参数，并初始化界面

参数

pParameter 相关的参数。在重载函数中转换成相应的类型。

实现了 CParameterUI.

在文件 ParameterPluginUI.cpp 第 102 行定义.

类成员变量说明

◆ m_pPara

CParameterPlugin* CParameterPluginUI::m_pPara

private

在文件 ParameterPluginUI.h 第 25 行定义.

◆ ui

Ui::CParameterPluginUI* CParameterPluginUI::ui

private

在文件 ParameterPluginUI.h 第 24 行定义.

该类的文档由以下文件生成:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterPluginUI.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterPluginUI.cpp
