CParameterUI类 参考

参数界面接口 更多...

#include <ParameterUI.h>

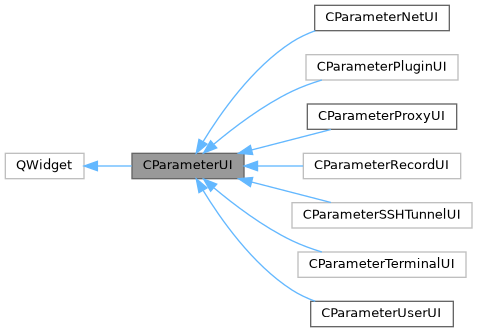

类 CParameterUI 继承关系图:

CParameterUI 的协作图:

Public 槽
virtual void	slotSetParameter (CParameter *pParameter)
	[override functions]
virtual void	slotAccept ()
	接受参数。不调用 CheckValidity

Public 成员函数
	CParameterUI (QWidget *parent=nullptr)
virtual int	SetParameter (CParameter *pParameter)=0
	[override functions]
virtual Q_INVOKABLE bool	CheckValidity (bool validity=false)
	检查参数的有效性
virtual int	Accept ()=0
	接受参数。如果需要，可先调用 CheckValidity

详细描述

参数界面接口

参见

CParameter

在文件 ParameterUI.h 第 14 行定义.

构造及析构函数说明

CParameterUI()

CParameterUI::CParameterUI ( QWidget *  parent = nullptr )

explicit

在文件 ParameterUI.cpp 第 5 行定义.

成员函数说明

Accept()

virtual int CParameterUI::Accept ( )

pure virtual

接受参数。如果需要，可先调用 CheckValidity

void CDlgSetFreeRDP::on_pbOk_clicked()
{
    int nRet = 0;

    if(!ui->wNet->CheckValidity(true)) {
        ui->tabWidget->setCurrentIndex(0);
        return;
    }
    if(!m_pProxyUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pProxyUI);
        return;
    }
    if(!m_pRecordUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pRecordUI);
        return;
    }

    m_pSettings->SetName(ui->leName->text());

    // Server
    m_pSettings->SetDomain(ui->leDomain->text());
    nRet = ui->wNet->Accept();
    if(nRet) return;

    nRet = m_pProxyUI->Accept();
    if(nRet) return;

    nRet = m_pRecordUI->Accept();
    if(nRet) return;

    m_pSettings->SetOnlyView(ui->cbOnlyView->isChecked());
    m_pSettings->SetClipboard(ui->cbClipboard->isChecked());
    m_pSettings->SetShowServerName(ui->cbShowServerName->isChecked());

    // Display
    m_pSettings->SetUseMultimon(ui->cbAllMonitor->isChecked());
    QString szSize = ui->cbDesktopSize->currentText();
    int index = szSize.indexOf("×");
    if(-1 < index)
    {
        UINT32 width = szSize.left(index).toInt();
        UINT32 height = szSize.right(szSize.length() - index - 1).toInt();
        m_pSettings->SetDesktopWidth(width);
        m_pSettings->SetDesktopHeight(height);
    }
    m_pSettings->SetColorDepth(ui->cbColorDepth->currentData().toInt());
    m_pSettings->SetReconnectInterval(ui->sbReconnect->value());

    // Redirection
    m_pSettings->SetRedirectionPrinter(ui->cbPrinter->isChecked());
    m_pSettings->SetEnableLocalInputMethod(ui->cbEnableLocalInputMethod->isChecked());
    if(HasAudioOutput()) {
        CParameterFreeRDP::RedirecionSoundType tRdirectionSound
            = CParameterFreeRDP::RedirecionSoundType::Disable;
        if(ui->rbAudioDisable->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Disable;
        else if(ui->rbAudioLocal->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Local;
        else if(ui->rbAudioRemote->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Remote;
        m_pSettings->SetRedirectionSound(tRdirectionSound);
    } else {
        m_pSettings->SetRedirectionSound(
            CParameterFreeRDP::RedirecionSoundType::Disable);
    }
    m_pSettings->SetRedirectionSoundParameters(ui->leRdpSnd->text());
    if(HasAudioInput())
        m_pSettings->SetRedirectionMicrophone(ui->cbAudin->isChecked());
    else
        m_pSettings->SetRedirectionMicrophone(false);
    m_pSettings->SetRedirectionMicrophoneParameters(ui->leAudin->text());

    QStringList lstDrives;
    //获取选中的行，默认获取选中行的第一列数据（0），列的索引值和上面一样0、1、2、3......
    QModelIndexList selected = ui->tvDrive->selectionModel()->selectedRows(0);
    QList<QModelIndex>::iterator it;
    QModelIndex modelIndex;
    QString szPath;
    for (it = selected.begin(); it != selected.end(); ++it)
    {
        modelIndex = *it;
        szPath = m_pFileModel->filePath(modelIndex);
        if(!szPath.isEmpty())
            lstDrives.append(szPath);
    }
    m_pSettings->SetRedirectionDrives(lstDrives);

    // Security
    m_pSettings->SetNegotiateSecurityLayer(ui->cbSecurityEnable->isChecked());
    uint security = 0;
    if(ui->cbSecurityRDP->isChecked())
        security |= CParameterFreeRDP::Security::RDP;
    if(ui->cbSecurityTls->isChecked())
        security |= CParameterFreeRDP::Security::TLS;
    if(ui->cbSecurityNLA->isChecked())
        security |= CParameterFreeRDP::Security::NLA;
    if(ui->cbSecurityNlaExt->isChecked())
        security |= CParameterFreeRDP::Security::NLA_Ext;
    if(ui->cbSecurityRDSTLS->isChecked())
        security |= CParameterFreeRDP::Security::RDSTLS;
    if(ui->cbSecurityRDSAAD->isChecked())
        security |= CParameterFreeRDP::Security::RDSAAD;
    m_pSettings->SetSecurity((CParameterFreeRDP::Security)security);

    // Tls version
    if(ui->rbTls1_0->isChecked())
        m_pSettings->SetTlsVersion(TLS1_VERSION);
    else if(ui->rbTls1_1->isChecked())
        m_pSettings->SetTlsVersion(TLS1_1_VERSION);
    else if(ui->rbTls1_2->isChecked())
        m_pSettings->SetTlsVersion(TLS1_2_VERSION);
    else if(ui->rbTls1_3->isChecked())
        m_pSettings->SetTlsVersion(TLS1_3_VERSION);

    // Connect type
    m_pSettings->SetConnectType(ui->cbConnectType->currentData().toUInt());
    // Performance flags
    UINT32 performanceFlags = 0;
    if(!ui->cbDesktopBackground->isChecked())
        performanceFlags |= PERF_DISABLE_WALLPAPER;
    if(!ui->cbWindowDrag->isChecked())
        performanceFlags |= PERF_DISABLE_FULLWINDOWDRAG;
    if(!ui->cbMenuAnims->isChecked())
        performanceFlags |= PERF_DISABLE_MENUANIMATIONS;
    if(!ui->cbThemes->isChecked())
        performanceFlags |= PERF_DISABLE_THEMING;
    if(ui->cbFontSmoothing->isChecked())
        performanceFlags |= PERF_ENABLE_FONT_SMOOTHING;
    if(ui->cbDesktopCompositing->isChecked())
        performanceFlags |= PERF_ENABLE_DESKTOP_COMPOSITION;
    m_pSettings->SetPerformanceFlags(performanceFlags);

    accept();
}

返回

成功返回 0 。其它值为失败。

在 CParameterNetUI, CParameterProxyUI, CParameterDatabaseUI, CFrmManagePlugins, CParameterPluginUI, CParameterSSHTunnelUI, CParameterUserUI , 以及 CParameterTerminalUI 内被实现.

CheckValidity()

bool CParameterUI::CheckValidity ( bool  validity = false )

virtual

检查参数的有效性

参数

validity

标志是否检查参数 true: 检查参数 false: 不检查参数

被 CParameterDatabaseUI, CParameterPluginUI, CParameterNetUI, CParameterProxyUI , 以及 CParameterSSHTunnelUI 重载.

在文件 ParameterUI.cpp 第 9 行定义.

SetParameter()

virtual int CParameterUI::SetParameter ( CParameter *  pParameter )

pure virtual

[override functions]

设置参数，并初始化界面

参数

pParameter

相关的参数。在重载函数中转换成相应的类型。

在 CParameterNetUI, CParameterProxyUI, CParameterDatabaseUI, CFrmManagePlugins, CParameterPluginUI, CParameterSSHTunnelUI, CParameterUserUI , 以及 CParameterTerminalUI 内被实现.

slotAccept

void CParameterUI::slotAccept ( )

virtualslot

接受参数。不调用 CheckValidity

在文件 ParameterUI.cpp 第 20 行定义.

slotSetParameter

void CParameterUI::slotSetParameter ( CParameter *  pParameter )

virtualslot

[override functions]

设置参数，并初始化界面

参数

pParameter

相关的参数。在重载函数 SetParameter() 中转换成相应的类型。

在文件 ParameterUI.cpp 第 15 行定义.

---

该类的文档由以下文件生成:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterUI.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterUI.cpp
