CBackendServer Class Reference

Server interface. More...

#include <BackendServer.h>

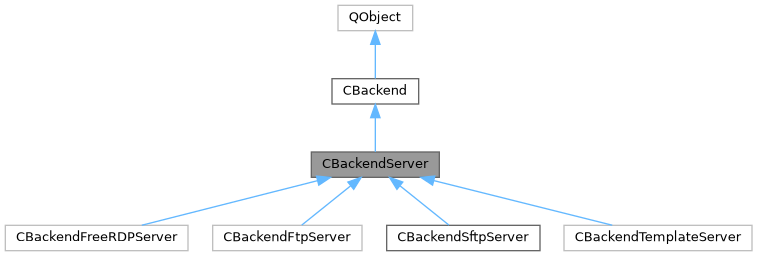

Inheritance diagram for CBackendServer:

Collaboration diagram for CBackendServer:

Public Slots
virtual void	slotDisconnect (const QString &szIp, const quint16 port)=0
	Disconnect client.

Signals
void	sigConnected (const QString &szIp, const quint16 port)
	emit when new client connected
void	sigDisconnected (const QString &szIp, const quint16 port)
	emit when the client disconnected
Signals inherited from CBackend
void	sigRunning ()
	Emitted when the plugin is successfully started.
void	sigStop ()
	Notify the user to stop.
void	sigFinished ()
	Successful stopped signal.
void	sigError (const int nError, const QString &szError=QString())
	Triggered when an error is generated.
void	sigInformation (const QString &szInfo)
	Triggering from a background thread displays information in the main thread without blocking the background thread.
void	sigShowMessageBox (const QString &szTitle, const QString &szMessage, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.
void	sigBlockShowMessageBox (const QString &szTitle, const QString &szMessage, QMessageBox::StandardButtons buttons, QMessageBox::StandardButton &nRet, bool &checkBox, QString checkBoxContext=QString())
	Block background threads and display message dialogs in foreground threads (QMessageBox)
void	sigBlockInputDialog (const QString &szTitle, const QString &szLable, const QString &szMessage, QString &szText)
	Block background threads and display input dialogs in foreground threads (QInputDialog)
void	sigBlockShowWidget (const QString &className, int &nRet, void *pContext)
	Blocks the background thread and displays the window in the foreground thread.
void	sigSecurityLevel (CSecurityLevel::Levels level)
	Triggered when the security level changes.

Public Member Functions
	CBackendServer (COperateServer *pOperate=nullptr, bool bStopSignal=true)
Public Member Functions inherited from CBackend
	CBackend (COperate *pOperate=nullptr, bool bStopSignal=true)
	CBackend.
virtual int	Start ()
	Start.
virtual int	Stop ()
	Stop.
virtual int	WakeUp ()
	Wake up backend thread(background thread).

Private Member Functions
int	SetConnect (COperateServer *pOperate)

Additional Inherited Members
Protected Types inherited from CBackend
enum class	OnInitReturnValue { Fail = -1 , Success = 0 , UseOnProcess = Success , NotUseOnProcess = 1 }
Protected Slots inherited from CBackend
virtual void	slotTimeOut ()
	a non-Qt event loop (that is, normal loop processing)， It call OnProcess(), and start timer.
Protected Member Functions inherited from CBackend
virtual OnInitReturnValue	OnInit ()=0
	Initialization.
virtual int	OnClean ()=0
	Clean.
virtual int	OnProcess ()
	Specific operation processing of plug-in.

Detailed Description

Server interface.

It is implemented by the Protocol plugin.

See also

COperateServer CFrmViewServer

Definition at line 19 of file BackendServer.h.

Constructor & Destructor Documentation

~CBackendServer()

CBackendServer::~CBackendServer ( )

virtual

Definition at line 14 of file BackendServer.cpp.

Member Function Documentation

SetConnect()

int CBackendServer::SetConnect ( COperateServer *  pOperate )

private

Definition at line 19 of file BackendServer.cpp.

sigConnected

void CBackendServer::sigConnected ( const QString &  szIp, const quint16  port  )

signal

emit when new client connected

Parameters

szIp
port

sigDisconnected

void CBackendServer::sigDisconnected ( const QString &  szIp, const quint16  port  )

signal

emit when the client disconnected

Parameters

szIp
port

slotDisconnect

virtual void CBackendServer::slotDisconnect ( const QString &  szIp, const quint16  port  )

pure virtualslot

Disconnect client.

Parameters

szIp
port

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/BackendServer.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/BackendServer.cpp
