Operate interface. More...

#include <Operate.h>

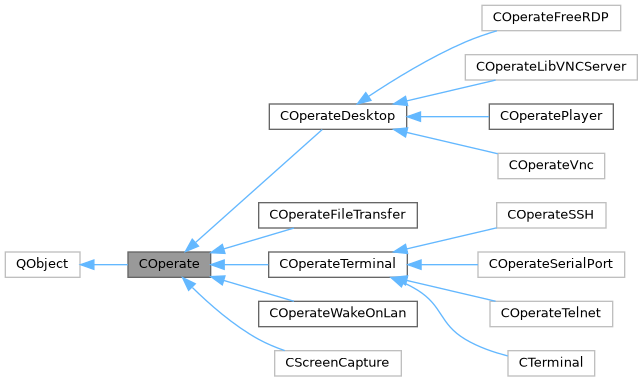

Inheritance diagram for COperate:

[legend]

Collaboration diagram for COperate:

[legend]

Public Types
enum class	SecurityLevel { No , Secure , NonSecureAuthentication , SecureChannel , Normal = SecureChannel , SecureAuthentication , Risky }

Signals
void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Public Member Functions
	COperate (CPlugin *plugin)

virtual QWidget *	GetViewer ()=0
	Get Viewer.

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

virtual SecurityLevel	GetSecurityLevel ()

virtual QString	GetSecurityLevelString ()

virtual QColor	GetSecurityLevelColor ()

virtual int	Start ()=0
	Start.

virtual int	Stop ()=0
	Stop.

Property
virtual const QString	Id ()
	Identity.

virtual const QString	Name ()
	Name.

virtual const QString	Description ()
	Description.

virtual const QString	Protocol () const
	Protocol.

virtual const qint16	Version () const =0
	Version.

virtual const QIcon	Icon () const
	Icon.

virtual const QString	GetTypeName () const
	Get type name.

Static Public Member Functions
static QString	GetSecurityLevelString (SecurityLevel level)

static QColor	GetSecurityLevelColor (SecurityLevel level)

Protected Member Functions
virtual Q_INVOKABLE int	Initial ()
	Initial parameters and resource.

virtual Q_INVOKABLE int	Clean ()
	Clean parameters and resource.

virtual Q_INVOKABLE int	SetGlobalParameters (CParameterPlugin *pPara)=0
	Apply the global parameters of the plug-in.

Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

Static Protected Member Functions
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Protected Attributes
QMenu	m_Menu

QAction *	m_pActionSettings

Private Slots
void	slotUpdateName ()

virtual void	slotBlockShowWidget (const QString &className, int &nRet, void *pContext)
	Blocks the background thread and displays the window in the foreground thread.

virtual void	slotBlockShowMessageBox (const QString &szTitle, const QString &szMessage, QMessageBox::StandardButtons buttons, QMessageBox::StandardButton &nRet, bool &checkBox, QString szCheckBoxContext=QString())
	Block background threads and display message dialogs in foreground threads (QMessageBox)

virtual void	slotBlockInputDialog (const QString &szTitle, const QString &szLable, const QString &szMessage, QString &szText)
	Block background threads and display input dialogs in foreground threads (QInputDialog)

virtual void	slotSetClipboard (QMimeData *data)

virtual void	slotSettings ()

Private Member Functions
virtual QDialog *	OnOpenDialogSettings (QWidget *parent=nullptr)=0
	Open settgins dialog.

Private Attributes
CPlugin *	m_pPlugin

Load and save settings
QString	m_szSettings

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

virtual int	Load (QSettings &set)
	Load parameters.

virtual int	Save (QSettings &set)
	Save parameters.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Detailed Description

Operate interface.

Note

This interface is only used by users. It is implemented by plugins.
Its instance is in the main thread.

Class diagram:

Sequen diagram:

Basic implementations of the following types have been provided:

Remote desktop type:
Tool type:
- Is a non-blocking model(in main thread): COperateWakeOnLan
Termianal type: CConnecterTerminal
File transfer: COperateFileTransfer

See also: CPlugin

Definition at line 49 of file Operate.h.

Member Enumeration Documentation

◆ SecurityLevel

enum class COperate::SecurityLevel

strong

Definition at line 116 of file Operate.h.

Constructor & Destructor Documentation

◆ ~COperate()

COperate::~COperate ( )

virtual

Definition at line 28 of file Operate.cpp.

Member Function Documentation

◆ Clean()

int COperate::Clean ( )

protectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented in COperateFileTransfer, COperateFreeRDP, COperateLibVNCServer, COperatePlayer, CScreenCapture, COperateSSH, COperateVnc, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

Definition at line 242 of file Operate.cpp.

◆ createObject()

QObject * COperate::createObject	(	const QString &	className,
		QObject *	parent = `NULL`
	)

staticprotected

Definition at line 279 of file Operate.cpp.

◆ Description()

const QString COperate::Description ( )

virtual

Description.

Reimplemented in COperateFileTransfer, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateDesktop, and COperateTerminal.

Definition at line 46 of file Operate.cpp.

◆ GetMenu()

QMenu * COperate::GetMenu ( QWidget * parent = nullptr )

virtual

Get menu.

Definition at line 107 of file Operate.cpp.

◆ GetPlugin()

CPlugin * COperate::GetPlugin ( ) const

protected

Get plugin.

See also: CManager::DeleteOperate

Definition at line 254 of file Operate.cpp.

◆ GetSecurityLevel()

COperate::SecurityLevel COperate::GetSecurityLevel ( )

virtual

Definition at line 114 of file Operate.cpp.

◆ GetSecurityLevelColor() [1/2]

QColor COperate::GetSecurityLevelColor ( )

virtual

Definition at line 145 of file Operate.cpp.

◆ GetSecurityLevelColor() [2/2]

QColor COperate::GetSecurityLevelColor ( SecurityLevel level )

static

Definition at line 150 of file Operate.cpp.

◆ GetSecurityLevelString() [1/2]

QString COperate::GetSecurityLevelString ( )

virtual

Definition at line 119 of file Operate.cpp.

◆ GetSecurityLevelString() [2/2]

QString COperate::GetSecurityLevelString ( SecurityLevel level )

static

Definition at line 124 of file Operate.cpp.

◆ GetSettingsFile()

QString COperate::GetSettingsFile ( )

virtual

Definition at line 169 of file Operate.cpp.

◆ GetTypeName()

const QString COperate::GetTypeName ( ) const

virtual

Get type name.

Definition at line 76 of file Operate.cpp.

◆ GetViewer()

virtual QWidget * COperate::GetViewer ( )

pure virtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implemented in COperateFileTransfer, CScreenCapture, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

◆ Icon()

const QIcon COperate::Icon ( ) const

virtual

Icon.

Definition at line 82 of file Operate.cpp.

◆ Id()

const QString COperate::Id ( )

virtual

Identity.

Reimplemented in COperateFileTransfer, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateVnc, COperateWakeOnLan, and COperateDesktop.

Definition at line 33 of file Operate.cpp.

◆ Initial()

int COperate::Initial ( )

protectedvirtual

Initial parameters and resource.

See also: CManager::CreateOperate

Reimplemented in COperateFileTransfer, COperateFreeRDP, COperateLibVNCServer, COperatePlayer, CScreenCapture, COperateSSH, CTerminal, COperateVnc, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

Definition at line 225 of file Operate.cpp.

◆ Load() [1/2]

int COperate::Load ( QSettings & set )

protectedvirtual

Load parameters.

Reimplemented in COperateFileTransfer, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

Definition at line 211 of file Operate.cpp.

◆ Load() [2/2]

int COperate::Load ( QString szFile = QString() )

protectedvirtual

Load parameters from file.

See also: CManger::LoadOperate

Definition at line 187 of file Operate.cpp.

◆ Name()

const QString COperate::Name ( )

virtual

Name.

Reimplemented in COperateFileTransfer, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateWakeOnLan, and COperateDesktop.

Definition at line 41 of file Operate.cpp.

◆ OnOpenDialogSettings()

virtual QDialog * COperate::OnOpenDialogSettings ( QWidget * parent = nullptr )

privatepure virtual

Open settgins dialog.

Parameters

parent the parent windows of the dialog of return

Returns: QDialog*: then QDialog must be allocated in heap memory, the ownership is caller.

See also: OpenDialogSettings

Implemented in COperateFileTransfer, COperateFreeRDP, COperateLibVNCServer, COperatePlayer, CScreenCapture, COperateSerialPort, COperateSSH, COperateTelnet, CTerminal, COperateWakeOnLan, and COperateVnc.

◆ OpenDialogSettings()

int COperate::OpenDialogSettings ( QWidget * parent = nullptr )

virtual

Open settings dialog.

Parameters

parent

Returns

DialogCode

QDialog::Accepted
QDialog::Rejected
-1: error

Definition at line 87 of file Operate.cpp.

◆ Protocol()

const QString COperate::Protocol ( ) const

virtual

Protocol.

Reimplemented in COperateFileTransfer.

Definition at line 71 of file Operate.cpp.

◆ Save() [1/2]

int COperate::Save ( QSettings & set )

protectedvirtual

Save parameters.

Reimplemented in COperateFileTransfer, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

Definition at line 218 of file Operate.cpp.

◆ Save() [2/2]

int COperate::Save ( QString szFile = QString() )

protectedvirtual

Save parameters to file.

Parameters

szFile File name.

See also: CManger::SaveOperate

Definition at line 199 of file Operate.cpp.

◆ SetGlobalParameters()

int COperate::SetGlobalParameters ( CParameterPlugin * pPara )

protectedpure virtual

Apply the global parameters of the plug-in.

Note: If you don't need the global parameters of the plugin, override it in the derived class and ignore.

See also: CManager::CreateOperate CParameterPlugin

Implemented in COperateFileTransfer, CScreenCapture, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

Definition at line 259 of file Operate.cpp.

◆ SetSettingsFile()

int COperate::SetSettingsFile ( const QString & szFile )

virtual

Definition at line 181 of file Operate.cpp.

◆ sigFinished

void COperate::sigFinished ( )

signal

Successful disconnection signal.

Triggered only by plugins

See also: Disconnect()

◆ sigInformation

void COperate::sigInformation ( const QString & szInfo )

signal

Show information in main windows.

Note: It differs from sigShowMessageBox in that sigShowMessageBox is displayed in a dialog box

Parameters

szInfo

See also: sigShowMessageBox MainWindow::slotInformation()

◆ sigRunning

void COperate::sigRunning ( )

signal

Start success signal.

Triggered only by plugins.

The application needs to set the view property Enabled to true at this point. enable accept keyboard and mouse event
If the plugin implements its own view (non-CFrmView), set the view property Enabled to true. Allows receiving keyboard and mouse events.

See also: MainWindow::slotRunning() GetViewer() CFrmViewer::CFrmViewer

◆ sigShowMessageBox

void COperate::sigShowMessageBox	(	const QString &	title,
		const QString &	message,
		const QMessageBox::Icon &	icon = `QMessageBox::Information`
	)

signal

Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

Note: It differs from sigInformation in that sigInformation is not displayed in a dialog box

See also: sigInformation Connect::SetConnecter MainWindow::slotShowMessageBox

◆ sigStop

void COperate::sigStop ( )

signal

Notify the user to stop.

Triggered only by plugins Emit when you need to stop from the plug-in. For example, the peer disconnect or reset the connection or the connection is error. When the applicatioin receive the signal, call Stop() to close connect

◆ sigUpdateName

void COperate::sigUpdateName ( const QString & szName )

signal

Note: The name is changed. This signal is only triggered by this class

◆ sigUpdateParameters

void COperate::sigUpdateParameters ( COperate * pOperate )

signal

Update parameters, notify application to save or show parameters.

Note: The plugin don't use it directly. Please use CParameter::sigChanged to emit this signal.

See also: COperateDesktop::SetParameter

◆ sigViewerFocusIn

void COperate::sigViewerFocusIn ( QWidget * pView )

signal

The view is focus.

Parameters

pView

◆ slotBlockInputDialog

void COperate::slotBlockInputDialog	(	const QString &	szTitle,
		const QString &	szLable,
		const QString &	szMessage,
		QString &	szText
	)

privatevirtualslot

Block background threads and display input dialogs in foreground threads (QInputDialog)

See also: CConnecter::sigBlockInputDialog() SetConnecter

Definition at line 369 of file Operate.cpp.

◆ slotBlockShowMessageBox

void COperate::slotBlockShowMessageBox	(	const QString &	szTitle,
		const QString &	szMessage,
		QMessageBox::StandardButtons	buttons,
		QMessageBox::StandardButton &	nRet,
		bool &	checkBox,
		QString	szCheckBoxContext = `QString()`
	)

privatevirtualslot

Block background threads and display message dialogs in foreground threads (QMessageBox)

See also: CConnect::sigBlockShowMessageBox

Definition at line 348 of file Operate.cpp.

◆ slotBlockShowWidget

void COperate::slotBlockShowWidget	(	const QString &	className,
		int &	nRet,
		void *	pContext
	)

privatevirtualslot

Blocks the background thread and displays the window in the foreground thread.

Parameters

className	show windows class name The class must have follower public functions: Q_INVOKABLE void SetContext(void* pContext);
nRet	If className is QDialog derived class, QDialog::exec() return value. Otherwise, ignore
pContext	pass context from CConnect::sigBlockShowWidget()

See also: CConnect::sigBlockShowWidget()

Definition at line 309 of file Operate.cpp.

◆ slotSetClipboard

void COperate::slotSetClipboard ( QMimeData * data )

privatevirtualslot

Note: The slot only is used by CBackendDesktop::SetConnect()

Definition at line 384 of file Operate.cpp.

◆ slotSettings

void COperate::slotSettings ( )

privatevirtualslot

Definition at line 247 of file Operate.cpp.

◆ slotUpdateName

void COperate::slotUpdateName ( )

privateslot

Definition at line 274 of file Operate.cpp.

◆ Start()

virtual int COperate::Start ( )

pure virtual

Start.

Note: Only call by user, The plugin don't call it. When plugin is started, it emit sigRunning()

See also: sigRunning()

Implemented in COperateFileTransfer.

◆ Stop()

virtual int COperate::Stop ( )

pure virtual

Stop.

Note: Only call by user, The plugin don't call it. When plugin is stopped, it emit sigFinished(). The caller receive the signal, then delete the object.

See also: sigFinished()

Implemented in COperateFileTransfer.

◆ Version()

virtual const qint16 COperate::Version ( ) const

pure virtual

Version.

Implemented in COperateFileTransfer, COperateFreeRDP, COperateLibVNCServer, COperatePlayer, CScreenCapture, COperateVnc, COperateWakeOnLan, COperateDesktop, and COperateTerminal.

Member Data Documentation

◆ m_Menu

QMenu COperate::m_Menu

protected

Definition at line 409 of file Operate.h.

◆ m_pActionSettings

QAction* COperate::m_pActionSettings

protected

Definition at line 410 of file Operate.h.

◆ m_pPlugin

CPlugin* COperate::m_pPlugin

private

Definition at line 415 of file Operate.h.

◆ m_szSettings

QString COperate::m_szSettings

private

Definition at line 323 of file Operate.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Operate.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Operate.cpp

Public Types

Signals

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Slots

Private Member Functions

Private Attributes

Load and save settings

Detailed Description

Member Enumeration Documentation

◆ SecurityLevel

Constructor & Destructor Documentation

◆ ~COperate()

Member Function Documentation

◆ Clean()

◆ createObject()

◆ Description()

◆ GetMenu()

◆ GetPlugin()

◆ GetSecurityLevel()

◆ GetSecurityLevelColor() [1/2]

◆ GetSecurityLevelColor() [2/2]

◆ GetSecurityLevelString() [1/2]

◆ GetSecurityLevelString() [2/2]

◆ GetSettingsFile()

◆ GetTypeName()

◆ GetViewer()

◆ Icon()

◆ Id()

◆ Initial()

◆ Load() [1/2]

◆ Load() [2/2]

◆ Name()

◆ OnOpenDialogSettings()

◆ OpenDialogSettings()

◆ Protocol()

◆ Save() [1/2]

◆ Save() [2/2]

◆ SetGlobalParameters()

◆ SetSettingsFile()

◆ sigFinished

◆ sigInformation

◆ sigRunning

◆ sigShowMessageBox

◆ sigStop

◆ sigUpdateName

◆ sigUpdateParameters

◆ sigViewerFocusIn

◆ slotBlockInputDialog

◆ slotBlockShowMessageBox

◆ slotBlockShowWidget

◆ slotSetClipboard

◆ slotSettings

◆ slotUpdateName

◆ Start()

◆ Stop()

◆ Version()

Member Data Documentation

◆ m_Menu

◆ m_pActionSettings

◆ m_pPlugin

◆ m_szSettings
