ssh tunnel class More...

#include <ChannelSSHTunnel.h>

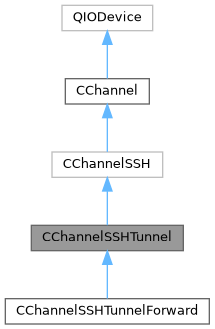

Inheritance diagram for CChannelSSHTunnel:

Public Member Functions
	CChannelSSHTunnel (CParameterSSHTunnel parameter, CParameterNet remote, CConnect pConnect, bool bWakeUp=true, QObject parent=nullptr)

virtual bool	open (OpenMode mode) override

virtual void	close () override

virtual QString	GetDetails () override
	Depend on information.

int	Process ()

virtual int	WakeUp ()

virtual int	DoWait (bool bWrite, int timeout)

int	GetSocket ()

Public Member Functions inherited from CChannel
	CChannel (QTcpSocket pSocket, QObject parent=nullptr)
	CChannel.

Protected Member Functions
virtual qint64	readData (char *data, qint64 maxlen) override

virtual qint64	writeData (const char *data, qint64 len) override

Protected Member Functions inherited from CChannel
	CChannel (QObject *parent=nullptr)

virtual bool	isSequential () const override

Protected Attributes
ssh_session	m_Session

ssh_channel	m_Channel

Private Member Functions
int	verifyKnownhost (ssh_session session)

int	authentication (ssh_session session, const QString szUser, const QString szPassword, const QString szPassphrase, const int nMethod=SSH_AUTH_METHOD_PASSWORD)

int	authenticationPublicKey (ssh_session session, const QString szUser, const QString szPublicKeyFile, const QString szPrivateKeyFile, const QString szPassphrase)

int	forward (ssh_session session)

Static Private Member Functions
static void	cb_log (ssh_session session, int priority, const char message, void userdata)

Private Attributes
CConnect *	m_pConnect

ssh_pcap_file	m_pcapFile

CParameterSSHTunnel *	m_pParameter

CParameterNet *	m_pRemoteNet

Channel::CEvent *	m_pEvent

Additional Inherited Members
Signals inherited from CChannel
void	sigConnected ()
	emit when the channel is connected.

void	sigDisconnected ()
	emit when the channel is disconnected

void	sigError (int nErr, const QString &szErr)
	emit when the channel is error

Static Public Member Functions inherited from CChannel
static int	InitTranslation ()
	Initial translation.

static int	RemoveTranslation ()
	Remove translation.

Detailed Description

ssh tunnel class

Definition at line 30 of file ChannelSSHTunnel.h.

Constructor & Destructor Documentation

◆ CChannelSSHTunnel()

static Channel SSH log CChannelSSHTunnel::CChannelSSHTunnel	(	CParameterSSHTunnel *	parameter,
		CParameterNet *	remote,
		CConnect *	pConnect,
		bool	bWakeUp = `true`,
		QObject *	parent = `nullptr`
	)

explicit

Definition at line 24 of file ChannelSSHTunnel.cpp.

◆ ~CChannelSSHTunnel()

CChannelSSHTunnel::~CChannelSSHTunnel ( )

virtual

Definition at line 51 of file ChannelSSHTunnel.cpp.

Member Function Documentation

◆ authentication()

int CChannelSSHTunnel::authentication	(	ssh_session	session,
		const QString	szUser,
		const QString	szPassword,
		const QString	szPassphrase,
		const int	nMethod = `SSH_AUTH_METHOD_PASSWORD`
	)

private

See also: : https://api.libssh.org/stable/libssh_tutor_authentication.html

Definition at line 435 of file ChannelSSHTunnel.cpp.

◆ authenticationPublicKey()

int CChannelSSHTunnel::authenticationPublicKey	(	ssh_session	session,
		const QString	szUser,
		const QString	szPublicKeyFile,
		const QString	szPrivateKeyFile,
		const QString	szPassphrase
	)

private

Definition at line 511 of file ChannelSSHTunnel.cpp.

◆ cb_log()

void CChannelSSHTunnel::cb_log	(	ssh_session	session,
		int	priority,
		const char *	message,
		void *	userdata
	)

staticprivate

Definition at line 63 of file ChannelSSHTunnel.cpp.

◆ close()

void CChannelSSHTunnel::close ( )

overridevirtual

Reimplemented from CChannel.

Definition at line 258 of file ChannelSSHTunnel.cpp.

◆ DoWait()

int CChannelSSHTunnel::DoWait	(	bool	bWrite,
		int	timeout
	)

virtual

Definition at line 824 of file ChannelSSHTunnel.cpp.

◆ forward()

int CChannelSSHTunnel::forward ( ssh_session session )

private

Definition at line 598 of file ChannelSSHTunnel.cpp.

◆ GetDetails()

QString CChannelSSHTunnel::GetDetails ( )

overridevirtual

Depend on information.

Reimplemented from CChannel.

Definition at line 58 of file ChannelSSHTunnel.cpp.

◆ GetSocket()

int CChannelSSHTunnel::GetSocket ( )

Definition at line 82 of file ChannelSSHTunnel.cpp.

◆ open()

bool CChannelSSHTunnel::open ( OpenMode mode )

overridevirtual

Parameters

pSocket The Owner is the instance of this class.

Reimplemented from CChannel.

Reimplemented in CChannelSSHTunnelForward.

Definition at line 95 of file ChannelSSHTunnel.cpp.

◆ Process()

int CChannelSSHTunnel::Process ( )

Returns

>= 0: continue, Interval call time (msec)
= -1: stop
< -1: error

Definition at line 647 of file ChannelSSHTunnel.cpp.

◆ readData()

qint64 CChannelSSHTunnel::readData	(	char *	data,
		qint64	maxlen
	)

overrideprotectedvirtual

Reimplemented from CChannel.

Definition at line 742 of file ChannelSSHTunnel.cpp.

◆ verifyKnownhost()

int CChannelSSHTunnel::verifyKnownhost ( ssh_session session )

private

Definition at line 309 of file ChannelSSHTunnel.cpp.

◆ WakeUp()

int CChannelSSHTunnel::WakeUp ( )

virtual

Definition at line 89 of file ChannelSSHTunnel.cpp.

◆ writeData()

qint64 CChannelSSHTunnel::writeData	(	const char *	data,
		qint64	len
	)

overrideprotectedvirtual

Reimplemented from CChannel.

Definition at line 784 of file ChannelSSHTunnel.cpp.

Member Data Documentation

◆ m_Channel

ssh_channel CChannelSSHTunnel::m_Channel

protected

Definition at line 81 of file ChannelSSHTunnel.h.

◆ m_pcapFile

ssh_pcap_file CChannelSSHTunnel::m_pcapFile

private

Definition at line 85 of file ChannelSSHTunnel.h.

◆ m_pConnect

CConnect* CChannelSSHTunnel::m_pConnect

private

Definition at line 84 of file ChannelSSHTunnel.h.

◆ m_pEvent

Channel::CEvent* CChannelSSHTunnel::m_pEvent

private

Definition at line 93 of file ChannelSSHTunnel.h.

◆ m_pParameter

CParameterSSHTunnel* CChannelSSHTunnel::m_pParameter

private

Definition at line 86 of file ChannelSSHTunnel.h.

◆ m_pRemoteNet

CParameterNet* CChannelSSHTunnel::m_pRemoteNet

private

Definition at line 87 of file ChannelSSHTunnel.h.

◆ m_Session

ssh_session CChannelSSHTunnel::m_Session

protected

Definition at line 80 of file ChannelSSHTunnel.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Client/SSH/ChannelSSHTunnel.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Client/SSH/ChannelSSHTunnel.cpp
