CIceSignal Class Reference

The ICE signal interface class. More...

#include <IceSignal.h>

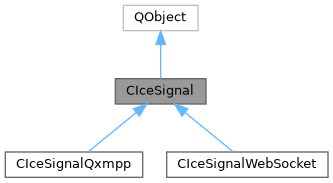

Inheritance diagram for CIceSignal:

Collaboration diagram for CIceSignal:

Signals
void	sigConnected ()
void	sigDisconnected ()
void	sigError (int nError, const QString &szError)
void	sigOffer (const QString &fromUser, const QString &toUser, const QString &channelId, const QString &type, const QString &sdp)
	sigOffer
void	sigCandidate (const QString &fromUser, const QString &toUser, const QString &channelId, const QString &mid, const QString &sdp)
	sigCandiate
void	sigDescription (const QString &fromUser, const QString &toUser, const QString &channelId, const QString &type, const QString &sdp)
	sigDescription

Public Member Functions
	CIceSignal (QObject *parent=nullptr)
virtual int	Open (const QString &szServer, quint16 nPort, const QString &user=QString(), const QString &password=QString())=0
virtual int	Close ()=0
virtual bool	IsConnected ()=0
virtual int	SendDescription (const QString &toUser, const QString &channelId, const rtc::Description &description, const QString &fromUser=QString())=0
virtual int	SendCandidate (const QString &toUser, const QString &channelId, const rtc::Candidate &candidate, const QString &fromUser=QString())=0

Protected Attributes
QLoggingCategory	m_Log

Detailed Description

The ICE signal interface class.

Author

Kang Lin kl222.nosp@m.@126.nosp@m..com

The signal is base on libdatachannel

Definition at line 25 of file IceSignal.h.

Constructor & Destructor Documentation

CIceSignal()

CIceSignal::CIceSignal ( QObject * parent = nullptr )

explicit

Author

Kang Lin kl222.nosp@m.@126.nosp@m..com

Definition at line 6 of file IceSignal.cpp.

~CIceSignal()

CIceSignal::~CIceSignal ( )

virtual

Definition at line 11 of file IceSignal.cpp.

Member Function Documentation

sigCandidate

void CIceSignal::sigCandidate ( const QString & fromUser, const QString & toUser, const QString & channelId, const QString & mid, const QString & sdp )

signal

sigCandiate

Parameters

user
id	channel id
mid
sdp

sigDescription

void CIceSignal::sigDescription ( const QString & fromUser, const QString & toUser, const QString & channelId, const QString & type, const QString & sdp )

signal

sigDescription

Parameters

user
id	channel id
type
sdp

sigOffer

void CIceSignal::sigOffer ( const QString & fromUser, const QString & toUser, const QString & channelId, const QString & type, const QString & sdp )

signal

sigOffer

Parameters

user
id	channel id

Member Data Documentation

m_Log

QLoggingCategory CIceSignal::m_Log

protected

Definition at line 90 of file IceSignal.h.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Channel/ICE/IceSignal.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Channel/ICE/IceSignal.cpp
