CParameterServerUI Class Reference

The server base parameters UI. More...

#include <ParameterServerUI.h>

Inheritance diagram for CParameterServerUI:

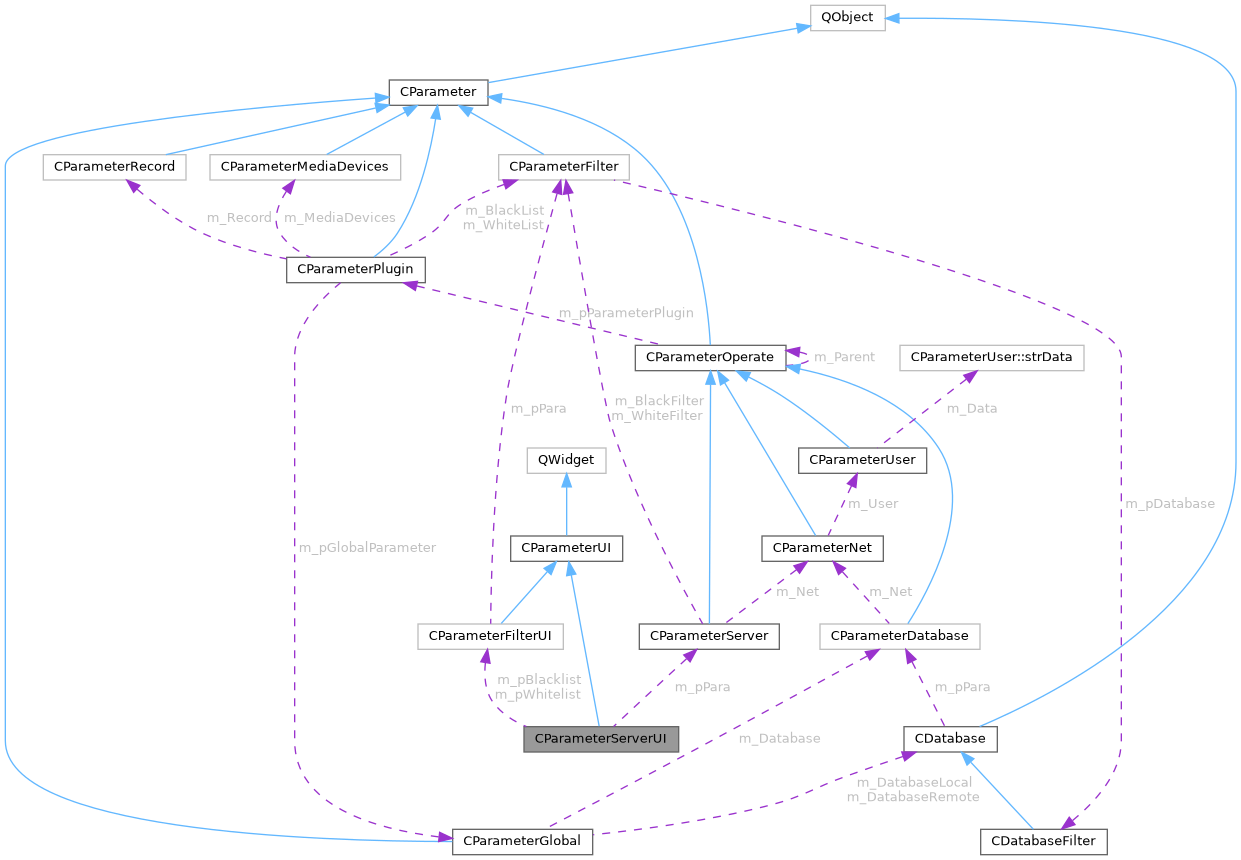

Collaboration diagram for CParameterServerUI:

Public Member Functions
	CParameterServerUI (QWidget *parent=nullptr)
virtual int	SetParameter (CParameter *pParameter) override
	[override functions]
virtual bool	CheckValidity (bool validity) override
	Check parameters validity.
virtual int	Accept () override
	Accept parameters.
Public Member Functions inherited from CParameterUI
	CParameterUI (QWidget *parent=nullptr)

Private Slots
void	on_cbListenAll_checkStateChanged (const Qt::CheckState &arg1)

Private Attributes
Ui::CParameterServerUI *	ui
CParameterServer *	m_pPara
QStandardItemModel	m_ModelNetWorkInterface
CParameterFilterUI *	m_pWhitelist
CParameterFilterUI *	m_pBlacklist

Additional Inherited Members
Public Slots inherited from CParameterUI
virtual void	slotSetParameter (CParameter *pParameter)
	[override functions]
virtual void	slotAccept ()
	Accept parameters.

Detailed Description

The server base parameters UI.

Definition at line 18 of file ParameterServerUI.h.

Constructor & Destructor Documentation

~CParameterServerUI()

CParameterServerUI::~CParameterServerUI

(

)

Definition at line 30 of file ParameterServerUI.cpp.

Member Function Documentation

Accept()

int CParameterServerUI::Accept ( )

overridevirtual

Accept parameters.

If necessary, you can call CheckValidity first.

void CDlgSetFreeRDP::on_pbOk_clicked()
{
    int nRet = 0;

    if(!ui->wNet->CheckValidity(true)) {
        ui->tabWidget->setCurrentIndex(0);
        return;
    }
    if(!m_pProxyUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pProxyUI);
        return;
    }
    if(!m_pRecordUI->CheckValidity(true)) {
        ui->tabWidget->setCurrentWidget(m_pRecordUI);
        return;
    }

    m_pSettings->SetName(ui->leName->text());

    // Server
    m_pSettings->SetDomain(ui->leDomain->text());
    nRet = ui->wNet->Accept();
    if(nRet) return;

    nRet = m_pProxyUI->Accept();
    if(nRet) return;

    nRet = m_pRecordUI->Accept();
    if(nRet) return;

    m_pSettings->SetOnlyView(ui->cbOnlyView->isChecked());
    m_pSettings->SetClipboard(ui->cbClipboard->isChecked());
    m_pSettings->SetShowServerName(ui->cbShowServerName->isChecked());

    // Display
    m_pSettings->SetUseMultimon(ui->cbAllMonitor->isChecked());
    QString szSize = ui->cbDesktopSize->currentText();
    int index = szSize.indexOf("×");
    if(-1 < index)
    {
        UINT32 width = szSize.left(index).toInt();
        UINT32 height = szSize.right(szSize.length() - index - 1).toInt();
        m_pSettings->SetDesktopWidth(width);
        m_pSettings->SetDesktopHeight(height);
    }
    m_pSettings->SetColorDepth(ui->cbColorDepth->currentData().toInt());
    m_pSettings->SetReconnectInterval(ui->sbReconnect->value());

    // Redirection
    m_pSettings->SetRedirectionPrinter(ui->cbPrinter->isChecked());
    m_pSettings->SetEnableLocalInputMethod(ui->cbEnableLocalInputMethod->isChecked());
    if(HasAudioOutput()) {
        CParameterFreeRDP::RedirecionSoundType tRdirectionSound
            = CParameterFreeRDP::RedirecionSoundType::Disable;
        if(ui->rbAudioDisable->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Disable;
        else if(ui->rbAudioLocal->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Local;
        else if(ui->rbAudioRemote->isChecked())
            tRdirectionSound = CParameterFreeRDP::RedirecionSoundType::Remote;
        m_pSettings->SetRedirectionSound(tRdirectionSound);
    } else {
        m_pSettings->SetRedirectionSound(
            CParameterFreeRDP::RedirecionSoundType::Disable);
    }
    m_pSettings->SetRedirectionSoundParameters(ui->leRdpSnd->text());
    if(HasAudioInput())
        m_pSettings->SetRedirectionMicrophone(ui->cbAudin->isChecked());
    else
        m_pSettings->SetRedirectionMicrophone(false);
    m_pSettings->SetRedirectionMicrophoneParameters(ui->leAudin->text());

    QStringList lstDrives;
    //获取选中的行，默认获取选中行的第一列数据（0），列的索引值和上面一样0、1、2、3......
    QModelIndexList selected = ui->tvDrive->selectionModel()->selectedRows(0);
    QList<QModelIndex>::iterator it;
    QModelIndex modelIndex;
    QString szPath;
    for (it = selected.begin(); it != selected.end(); ++it)
    {
        modelIndex = *it;
        szPath = m_pFileModel->filePath(modelIndex);
        if(!szPath.isEmpty())
            lstDrives.append(szPath);
    }
    m_pSettings->SetRedirectionDrives(lstDrives);

    // Security
    m_pSettings->SetNegotiateSecurityLayer(ui->cbSecurityEnable->isChecked());
    uint security = 0;
    if(ui->cbSecurityRDP->isChecked())
        security |= CParameterFreeRDP::Security::RDP;
    if(ui->cbSecurityTls->isChecked())
        security |= CParameterFreeRDP::Security::TLS;
    if(ui->cbSecurityNLA->isChecked())
        security |= CParameterFreeRDP::Security::NLA;
    if(ui->cbSecurityNlaExt->isChecked())
        security |= CParameterFreeRDP::Security::NLA_Ext;
    if(ui->cbSecurityRDSTLS->isChecked())
        security |= CParameterFreeRDP::Security::RDSTLS;
    if(ui->cbSecurityRDSAAD->isChecked())
        security |= CParameterFreeRDP::Security::RDSAAD;
    m_pSettings->SetSecurity((CParameterFreeRDP::Security)security);

    // Tls version
    if(ui->rbTls1_0->isChecked())
        m_pSettings->SetTlsVersion(TLS1_VERSION);
    else if(ui->rbTls1_1->isChecked())
        m_pSettings->SetTlsVersion(TLS1_1_VERSION);
    else if(ui->rbTls1_2->isChecked())
        m_pSettings->SetTlsVersion(TLS1_2_VERSION);
    else if(ui->rbTls1_3->isChecked())
        m_pSettings->SetTlsVersion(TLS1_3_VERSION);

    // Connect type
    m_pSettings->SetConnectType(ui->cbConnectType->currentData().toUInt());
    // Performance flags
    UINT32 performanceFlags = 0;
    if(!ui->cbDesktopBackground->isChecked())
        performanceFlags |= PERF_DISABLE_WALLPAPER;
    if(!ui->cbWindowDrag->isChecked())
        performanceFlags |= PERF_DISABLE_FULLWINDOWDRAG;
    if(!ui->cbMenuAnims->isChecked())
        performanceFlags |= PERF_DISABLE_MENUANIMATIONS;
    if(!ui->cbThemes->isChecked())
        performanceFlags |= PERF_DISABLE_THEMING;
    if(ui->cbFontSmoothing->isChecked())
        performanceFlags |= PERF_ENABLE_FONT_SMOOTHING;
    if(ui->cbDesktopCompositing->isChecked())
        performanceFlags |= PERF_ENABLE_DESKTOP_COMPOSITION;
    m_pSettings->SetPerformanceFlags(performanceFlags);

    accept();
}

Returns

0 is success. otherwise is fail

Implements CParameterUI.

Definition at line 83 of file ParameterServerUI.cpp.

CheckValidity()

bool CParameterServerUI::CheckValidity ( bool  validity )

overridevirtual

Check parameters validity.

Parameters

validity

true: Check parameters false: Not check parameters

Reimplemented from CParameterUI.

Definition at line 110 of file ParameterServerUI.cpp.

on_cbListenAll_checkStateChanged

void CParameterServerUI::on_cbListenAll_checkStateChanged ( const Qt::CheckState &  arg1 )

privateslot

Definition at line 118 of file ParameterServerUI.cpp.

SetParameter()

int CParameterServerUI::SetParameter ( CParameter *  pParameter )

overridevirtual

[override functions]

Set the parameters and initialize the user interface

Parameters

pParameter

Related parameters. Convert to the appropriate type in the overloaded function.

Implements CParameterUI.

Definition at line 35 of file ParameterServerUI.cpp.

Member Data Documentation

m_ModelNetWorkInterface

QStandardItemModel CParameterServerUI::m_ModelNetWorkInterface

private

Definition at line 36 of file ParameterServerUI.h.

m_pBlacklist

CParameterFilterUI* CParameterServerUI::m_pBlacklist

private

Definition at line 38 of file ParameterServerUI.h.

m_pPara

CParameterServer* CParameterServerUI::m_pPara

private

Definition at line 35 of file ParameterServerUI.h.

m_pWhitelist

CParameterFilterUI* CParameterServerUI::m_pWhitelist

private

Definition at line 37 of file ParameterServerUI.h.

ui

Ui::CParameterServerUI* CParameterServerUI::ui

private

Definition at line 34 of file ParameterServerUI.h.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterServerUI.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterServerUI.cpp
