CParameterBase Class Reference

The interface of connecter parameters. More...

#include <ParameterBase.h>

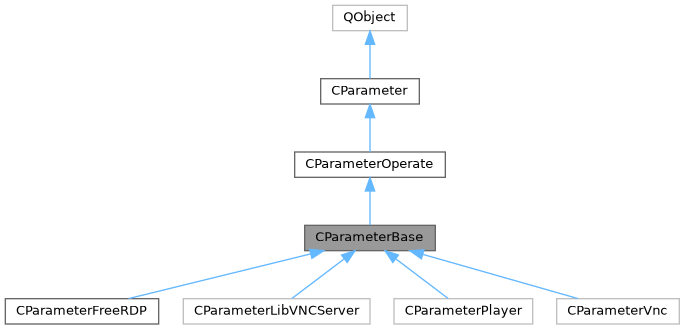

Inheritance diagram for CParameterBase:

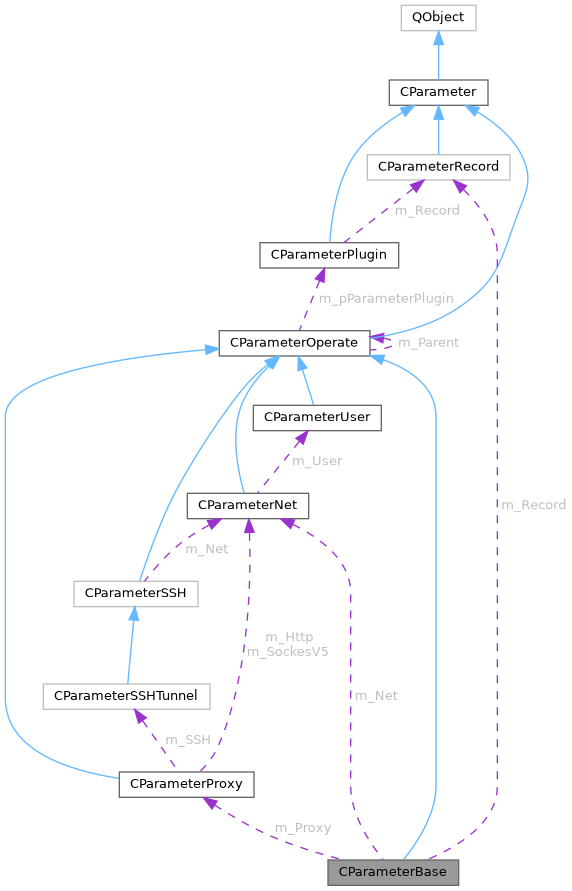

Collaboration diagram for CParameterBase:

Signals
void	sigNameChanged (const QString &name=QString())
void	sigShowServerNameChanged ()
void	sigEnableInputMethod (bool bEnable)
void	sigAdaptWindowsChanged (CFrmViewer::ADAPT_WINDOWS aw)
void	sigZoomFactorChanged (double newZoomFactor)
Signals inherited from CParameterOperate
void	sigSetGlobalParameters ()
	Only used by this class.
Signals inherited from CParameter
void	sigChanged ()
	emit when the parameter changes Usually if required, the corresponding parameter corresponds to a change event.

Public Member Functions
	CParameterBase (QObject *parent=nullptr)
	CParameterBase (CParameterOperate *parent, const QString &szPrefix=QString())
const QString	GetName () const
void	SetName (const QString &szName)
const QString	GetServerName () const
void	SetServerName (const QString &szName)
bool	GetShowServerName () const
void	SetShowServerName (bool NewShowServerName)
bool	GetOnlyView () const
void	SetOnlyView (bool only)
const bool	GetLocalCursor () const
void	SetLocalCursor (bool cursor)
const bool	GetCursorPosition () const
void	SetCursorPosition (bool pos)
virtual const bool	GetClipboard () const
virtual void	SetClipboard (bool c)
bool	GetSupportsDesktopResize () const
void	SetSupportsDesktopResize (bool newSupportsDesktopResize)
bool	GetLedState () const
void	SetLedState (bool state)
bool	GetEnableLocalInputMethod () const
void	SetEnableLocalInputMethod (bool enable)
CFrmViewer::ADAPT_WINDOWS	GetAdaptWindows ()
void	SetAdaptWindows (CFrmViewer::ADAPT_WINDOWS aw)
double	GetZoomFactor () const
void	SetZoomFactor (double newZoomFactor)
Public Member Functions inherited from CParameterOperate
	CParameterOperate (QObject *parent=nullptr, const QString &szPrefix=QString())
CParameterPlugin *	GetGlobalParameters ()
	Get CParameterPlugin.
int	SetGlobalParameters (CParameterPlugin *p)
Public Member Functions inherited from CParameter
	CParameter (QObject *parent=nullptr, const QString &szPrefix=QString())
virtual int	Load (QString szFile=QString())
	Load from file.
virtual int	Save (QString szFile=QString(), bool bForce=true)
	Save to file.
virtual int	Load (QSettings &set)
	Load from QSettings.
virtual int	Save (QSettings &set, bool bForce=true)
	Save to QSettings.
virtual bool	CheckValidity ()
	Check whether the parameter is valid to decide whether to use or save the parameter.

Public Attributes
CParameterNet	m_Net
CParameterProxy	m_Proxy
CParameterRecord	m_Record

Protected Member Functions
virtual int	OnLoad (QSettings &set) override
virtual int	OnSave (QSettings &set) override
virtual void	slotSetGlobalParameters () override
	Call after set CParameterPlugin.
Protected Member Functions inherited from CParameterOperate
QByteArray	PasswordSum (const std::string &password, const std::string &key)
int	LoadPassword (const QString &szTitle, const QString &szKey, QString &password, QSettings &set)
int	SavePassword (const QString &szKey, const QString &password, QSettings &set, bool bSave=false)
Protected Member Functions inherited from CParameter
virtual bool	OnCheckValidity ()
	Check validity.
int	SetModified (bool bModified=true)
	When setting parameters, if there is a modification, it is called.
bool	GetModified ()
	Whether the parameters have been modified.

Properties
QString	Name
QString	ServerName
bool	ShowServerName
bool	OnlyView
bool	LocalCursor
CFrmViewer::ADAPT_WINDOWS	AdaptWindows
double	ZoomFactor
Properties inherited from CParameter
bool	Modified

Private Member Functions
int	Init ()

Private Attributes
QString	m_szName
QString	m_szServerName
bool	m_bShowServerName
bool	m_bOnlyView
bool	m_bLocalCursor
bool	m_bCursorPosition
bool	m_bClipboard
bool	m_bSupportsDesktopResize
bool	m_bLedState
bool	m_bEnableLocalInputMethod
CFrmViewer::ADAPT_WINDOWS	m_AdaptWindows
double	m_dbZoomFactor

Additional Inherited Members

Protected Slots inherited from CParameterOperate

Detailed Description

The interface of connecter parameters.

include base parameters(network etc). All plug-in connection parameters should be derived from this class.

Use connecter parameter

• The plugins have some common parameters (e.g., network address, etc.), please derive the plugin parameters from CParameterBase.

  class CParameterFreeRDP : public CParameterBase

• Instantiate the connection parameters in the constructor of the derived class of CConnecter.
• Call CConnecter::SetParameter to set
• Because CConnecter is running main thread(UI thread), so that the parameter is running main thread.

Definition at line 45 of file ParameterBase.h.

Constructor & Destructor Documentation

CParameterBase()

CParameterBase::CParameterBase ( CParameterOperate *  parent, const QString &  szPrefix = QString()  )

explicit

Definition at line 16 of file ParameterBase.cpp.

Member Function Documentation

GetAdaptWindows()

CFrmViewer::ADAPT_WINDOWS CParameterBase::GetAdaptWindows

(

)

Definition at line 197 of file ParameterBase.cpp.

GetClipboard()

const bool CParameterBase::GetClipboard ( ) const

virtual

Definition at line 158 of file ParameterBase.cpp.

GetCursorPosition()

const bool CParameterBase::GetCursorPosition

(

)

const

Definition at line 145 of file ParameterBase.cpp.

GetEnableLocalInputMethod()

bool CParameterBase::GetEnableLocalInputMethod

(

)

const

Definition at line 245 of file ParameterBase.cpp.

GetLedState()

bool CParameterBase::GetLedState

(

)

const

Definition at line 184 of file ParameterBase.cpp.

GetLocalCursor()

const bool CParameterBase::GetLocalCursor

(

)

const

Definition at line 132 of file ParameterBase.cpp.

GetName()

const QString CParameterBase::GetName

(

)

const

Definition at line 78 of file ParameterBase.cpp.

GetOnlyView()

bool CParameterBase::GetOnlyView

(

)

const

Definition at line 119 of file ParameterBase.cpp.

GetServerName()

const QString CParameterBase::GetServerName

(

)

const

Definition at line 92 of file ParameterBase.cpp.

GetShowServerName()

bool CParameterBase::GetShowServerName

(

)

const

Definition at line 105 of file ParameterBase.cpp.

GetSupportsDesktopResize()

bool CParameterBase::GetSupportsDesktopResize

(

)

const

Definition at line 171 of file ParameterBase.cpp.

GetZoomFactor()

double CParameterBase::GetZoomFactor

(

)

const

Definition at line 211 of file ParameterBase.cpp.

Init()

int CParameterBase::Init ( )

private

Definition at line 26 of file ParameterBase.cpp.

OnLoad()

int CParameterBase::OnLoad ( QSettings &  set )

overrideprotectedvirtual

Implements CParameter.

Definition at line 40 of file ParameterBase.cpp.

OnSave()

int CParameterBase::OnSave ( QSettings &  set )

overrideprotectedvirtual

Implements CParameter.

Definition at line 61 of file ParameterBase.cpp.

SetAdaptWindows()

void CParameterBase::SetAdaptWindows

(

CFrmViewer::ADAPT_WINDOWS

aw

)

Definition at line 202 of file ParameterBase.cpp.

SetClipboard()

void CParameterBase::SetClipboard ( bool  c )

virtual

Definition at line 163 of file ParameterBase.cpp.

SetCursorPosition()

void CParameterBase::SetCursorPosition

(

bool

pos

)

Definition at line 150 of file ParameterBase.cpp.

SetEnableLocalInputMethod()

void CParameterBase::SetEnableLocalInputMethod

(

bool

enable

)

Definition at line 250 of file ParameterBase.cpp.

SetLedState()

void CParameterBase::SetLedState

(

bool

state

)

Definition at line 189 of file ParameterBase.cpp.

SetLocalCursor()

void CParameterBase::SetLocalCursor

(

bool

cursor

)

Definition at line 137 of file ParameterBase.cpp.

SetName()

void CParameterBase::SetName

(

const QString &

szName

)

Definition at line 83 of file ParameterBase.cpp.

SetOnlyView()

void CParameterBase::SetOnlyView

(

bool

only

)

Definition at line 124 of file ParameterBase.cpp.

SetServerName()

void CParameterBase::SetServerName

(

const QString &

szName

)

Definition at line 97 of file ParameterBase.cpp.

SetShowServerName()

void CParameterBase::SetShowServerName

(

bool

NewShowServerName

)

Definition at line 110 of file ParameterBase.cpp.

SetSupportsDesktopResize()

void CParameterBase::SetSupportsDesktopResize

(

bool

newSupportsDesktopResize

)

Definition at line 176 of file ParameterBase.cpp.

SetZoomFactor()

void CParameterBase::SetZoomFactor

(

double

newZoomFactor

)

Definition at line 216 of file ParameterBase.cpp.

slotSetGlobalParameters()

void CParameterBase::slotSetGlobalParameters ( )

overrideprotectedvirtual

Call after set CParameterPlugin.

Used to initialize operations related to CParameterPlugin.

Use CParameterPlugin in CParameterOperate

Reimplemented from CParameterOperate.

Definition at line 226 of file ParameterBase.cpp.

Member Data Documentation

m_AdaptWindows

CFrmViewer::ADAPT_WINDOWS CParameterBase::m_AdaptWindows

private

Definition at line 121 of file ParameterBase.h.

m_bClipboard

bool CParameterBase::m_bClipboard

private

Definition at line 109 of file ParameterBase.h.

m_bCursorPosition

bool CParameterBase::m_bCursorPosition

private

Definition at line 108 of file ParameterBase.h.

m_bEnableLocalInputMethod

bool CParameterBase::m_bEnableLocalInputMethod

private

Definition at line 112 of file ParameterBase.h.

m_bLedState

bool CParameterBase::m_bLedState

private

Definition at line 111 of file ParameterBase.h.

m_bLocalCursor

bool CParameterBase::m_bLocalCursor

private

Definition at line 107 of file ParameterBase.h.

m_bOnlyView

bool CParameterBase::m_bOnlyView

private

Definition at line 106 of file ParameterBase.h.

m_bShowServerName

bool CParameterBase::m_bShowServerName

private

Definition at line 105 of file ParameterBase.h.

m_bSupportsDesktopResize

bool CParameterBase::m_bSupportsDesktopResize

private

Definition at line 110 of file ParameterBase.h.

m_dbZoomFactor

double CParameterBase::m_dbZoomFactor

private

Definition at line 129 of file ParameterBase.h.

m_Net

CParameterNet CParameterBase::m_Net

Definition at line 69 of file ParameterBase.h.

m_Proxy

CParameterProxy CParameterBase::m_Proxy

Definition at line 70 of file ParameterBase.h.

m_Record

CParameterRecord CParameterBase::m_Record

Definition at line 71 of file ParameterBase.h.

m_szName

QString CParameterBase::m_szName

private

Definition at line 102 of file ParameterBase.h.

m_szServerName

QString CParameterBase::m_szServerName

private

Definition at line 104 of file ParameterBase.h.

Property Documentation

AdaptWindows

CFrmViewer::ADAPT_WINDOWS CParameterBase::AdaptWindows

readwrite

Definition at line 122 of file ParameterBase.h.

LocalCursor

bool CParameterBase::LocalCursor

readwrite

Definition at line 53 of file ParameterBase.h.

Name

QString CParameterBase::Name

readwrite

Definition at line 48 of file ParameterBase.h.

OnlyView

bool CParameterBase::OnlyView

readwrite

Definition at line 52 of file ParameterBase.h.

ServerName

QString CParameterBase::ServerName

readwrite

Definition at line 49 of file ParameterBase.h.

ShowServerName

bool CParameterBase::ShowServerName

readwrite

Definition at line 50 of file ParameterBase.h.

ZoomFactor

double CParameterBase::ZoomFactor

readwrite

Definition at line 130 of file ParameterBase.h.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterBase.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterBase.cpp
