CPlugin Class Reference

Plugin interface. More...

#include <Plugin.h>

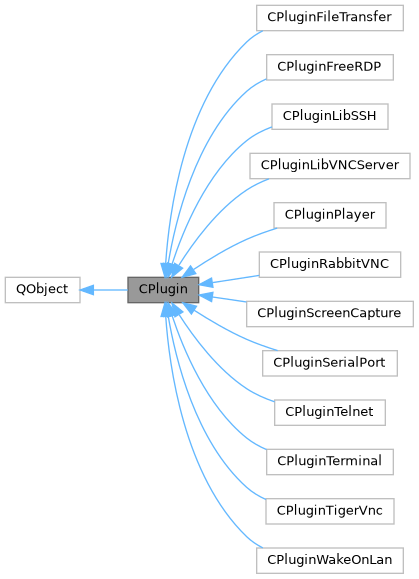

Inheritance diagram for CPlugin:

Collaboration diagram for CPlugin:

Public Types
enum class	TYPE {   RemoteDesktop , Terminal , Client , Service ,   FileTransfers , NetworkTools , Tools , Custom = 1000 }

Public Member Functions
	CPlugin (QObject *parent=nullptr)
virtual const TYPE	Type () const =0
virtual const QString	TypeName (const TYPE t) const
virtual const QString	Id ()
	ID. Default: Type() + ":" + Protocol() + ":" + Name()
virtual const QString	Protocol () const =0
	Plugin Protocol.
virtual const QString	Name () const =0
	This name must be the same as the project name (${PROJECT_NAME}). The translation file (${PROJECT_NAME}_*.ts)) name is associated with it.
virtual const QString	DisplayName () const
	The plugin display name.
virtual const QString	Description () const =0
	Plugin description.
virtual const QString	Version () const =0
	Version.
virtual const QIcon	Icon () const =0
virtual const QString	Details () const
	Display more information in About dialog or log.

Protected Member Functions
virtual Q_INVOKABLE COperate *	CreateOperate (const QString &szId, CParameterPlugin *para)
	New COperate instance.
virtual COperate *	OnCreateOperate (const QString &szId)=0
virtual Q_INVOKABLE int	DeleteOperate (COperate *p)
	Delete COperate.

Private Member Functions
Q_INVOKABLE int	InitTranslator ()
	Initialize the translation resource, which is only called by CClient.

Private Attributes
QSharedPointer< QTranslator >	m_Translator

Detailed Description

Plugin interface.

Definition at line 14 of file Plugin.h.

Member Enumeration Documentation

TYPE

enum class CPlugin::TYPE

strong

Definition at line 21 of file Plugin.h.

Constructor & Destructor Documentation

~CPlugin()

CPlugin::~CPlugin ( )

virtual

Definition at line 15 of file Plugin.cpp.

Member Function Documentation

CreateOperate()

COperate * CPlugin::CreateOperate ( const QString &  szId, CParameterPlugin *  para  )

protectedvirtual

New COperate instance.

[CPlugin CreateOperate]

Only is called by CClient

Returns

Return COperate pointer, the owner is caller

Note

The function new object pointer, the caller must delete it when don't use it.

Parameters

szId

See also

CClient::CreateOperate CClient::LoadOperate

Reimplemented in CPluginWakeOnLan.

Definition at line 84 of file Plugin.cpp.

DeleteOperate()

int CPlugin::DeleteOperate ( COperate *  p )

protectedvirtual

Delete COperate.

[CPlugin CreateOperate]

Reimplemented in CPluginWakeOnLan.

Definition at line 126 of file Plugin.cpp.

Description()

virtual const QString CPlugin::Description ( ) const

pure virtual

Plugin description.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, and CPluginWakeOnLan.

Details()

const QString CPlugin::Details ( ) const

virtual

Display more information in About dialog or log.

eg: Include the plugin depends on the library version and description

See also

CPluginFreeRDP::Details()

Reimplemented in CPluginFreeRDP, CPluginLibVNCServer, CPluginPlayer, CPluginLibSSH, CPluginTerminal, CPluginTigerVnc, and CPluginWakeOnLan.

Definition at line 78 of file Plugin.cpp.

DisplayName()

const QString CPlugin::DisplayName ( ) const

virtual

The plugin display name.

Reimplemented in CPluginFileTransfer, CPluginFreeRDP, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, and CPluginWakeOnLan.

Definition at line 73 of file Plugin.cpp.

Id()

const QString CPlugin::Id ( )

virtual

ID. Default: Type() + ":" + Protocol() + ":" + Name()

Definition at line 68 of file Plugin.cpp.

InitTranslator()

int CPlugin::InitTranslator ( )

private

Initialize the translation resource, which is only called by CClient.

Because it calls Name(), So it can't be called directly in the constructor of this class.

See also

CClient::AppendPlugin

Definition at line 23 of file Plugin.cpp.

Name()

virtual const QString CPlugin::Name ( ) const

pure virtual

This name must be the same as the project name (${PROJECT_NAME}). The translation file (${PROJECT_NAME}_*.ts)) name is associated with it.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, and CPluginWakeOnLan.

Protocol()

virtual const QString CPlugin::Protocol ( ) const

pure virtual

Plugin Protocol.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, and CPluginWakeOnLan.

Type()

virtual const TYPE CPlugin::Type ( ) const

pure virtual

Implemented in CPluginFreeRDP.

TypeName()

const QString CPlugin::TypeName ( const TYPE  t ) const

virtual

Definition at line 35 of file Plugin.cpp.

Version()

virtual const QString CPlugin::Version ( ) const

pure virtual

Version.

Implemented in CPluginFileTransfer, CPluginFreeRDP, CPluginLibVNCServer, CPluginPlayer, CPluginRabbitVNC, CPluginScreenCapture, CPluginSerialPort, CPluginLibSSH, CPluginTelnet, CPluginTerminal, CPluginTigerVnc, and CPluginWakeOnLan.

Member Data Documentation

m_Translator

QSharedPointer<QTranslator> CPlugin::m_Translator

private

Definition at line 95 of file Plugin.h.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Plugin.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/Plugin.cpp
