#include <BackendSftpServer.h>

Inheritance diagram for CBackendSftpServer:

[legend]

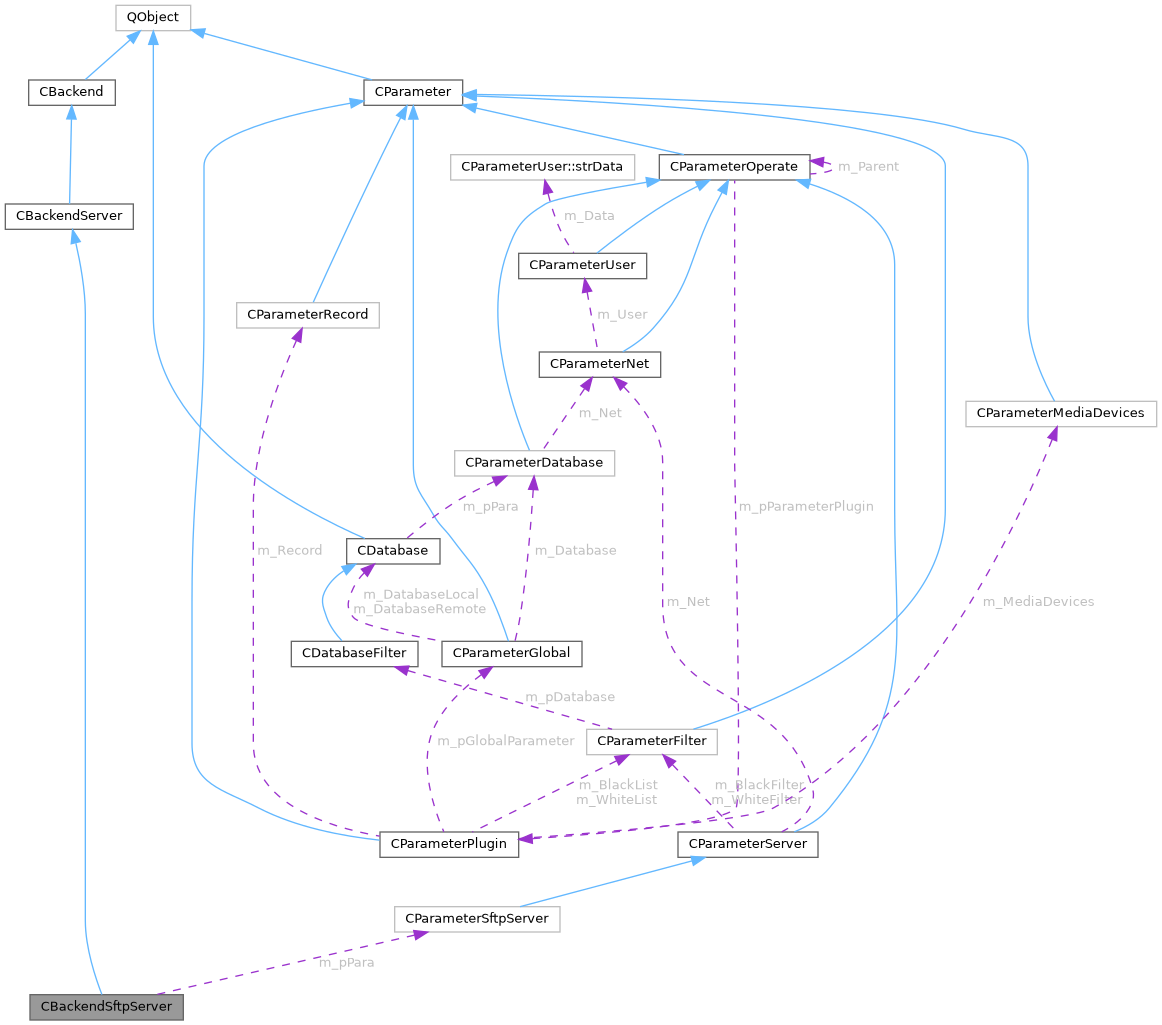

Collaboration diagram for CBackendSftpServer:

[legend]

Classes
struct	sBindData

struct	sClientData

Public Slots
virtual void	slotDisconnect (const QString &szIp, const quint16 port) override

Public Slots inherited from CBackendServer
virtual void	slotDisconnect (const QString &szIp, const quint16 port)=0
	Disconnect client.

Public Member Functions
	CBackendSftpServer (COperateSftpServer *pOperate=nullptr, bool bStopSignal=true)

Public Member Functions inherited from CBackendServer
	CBackendServer (COperateServer *pOperate=nullptr, bool bStopSignal=true)

Public Member Functions inherited from CBackend
	CBackend (COperate *pOperate=nullptr, bool bStopSignal=true)
	CBackend.

virtual int	Start ()
	Start.

virtual int	Stop ()
	Stop.

Protected Member Functions
virtual OnInitReturnValue	OnInit () override
	Initialization.

virtual int	OnClean () override
	Clean.

virtual int	OnProcess () override
	Specific operation processing of plug-in.

virtual int	WakeUp () override
	Wake up backend thread(background thread).

Private Slots
void	slotNewConnection ()

Private Member Functions
int	Listen (const QString &szIp, qint16 nPort)

ssh_bind	GetSshBind (QSocketNotifier *notifier)

bool	InitHostKey (ssh_bind ssdBind)

int	DeleteClient (sClientData *pClient)

Static Private Member Functions
static int	cbAuthPassword (ssh_session session, const char user, const char pass, void *userdata)

static int	cbAuthPublickey (ssh_session session, const char user, struct ssh_key_struct pubkey, char signature_state, void *userdata)

static ssh_channel	cbChannelOpen (ssh_session session, void *userdata)

static void	SendBanner (sClientData *pClient, const QString &user)

Private Attributes
CParameterSftpServer *	m_pPara

ssh_event	m_event

QList< sBindData * >	m_lstListen

QList< sClientData * >	m_lstClients

Additional Inherited Members
Signals inherited from CBackendServer
void	sigConnected (const QString &szIp, const quint16 port)
	emit when new client connected

void	sigDisconnected (const QString &szIp, const quint16 port)
	emit when the client disconnected

Signals inherited from CBackend
void	sigRunning ()
	Emitted when the plugin is successfully started.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful stopped signal.

void	sigError (const int nError, const QString &szError=QString())
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Triggering from a background thread displays information in the main thread without blocking the background thread.

void	sigShowMessageBox (const QString &szTitle, const QString &szMessage, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigBlockShowMessageBox (const QString &szTitle, const QString &szMessage, QMessageBox::StandardButtons buttons, QMessageBox::StandardButton &nRet, bool &checkBox, QString checkBoxContext=QString())
	Block background threads and display message dialogs in foreground threads (QMessageBox)

void	sigBlockInputDialog (const QString &szTitle, const QString &szLable, const QString &szMessage, QString &szText)
	Block background threads and display input dialogs in foreground threads (QInputDialog)

void	sigBlockShowWidget (const QString &className, int &nRet, void *pContext)
	Blocks the background thread and displays the window in the foreground thread.

void	sigSecurityLevel (CSecurityLevel::Levels level)
	Triggered when the security level changes.

Protected Types inherited from CBackend
enum class	OnInitReturnValue { Fail = -1 , Success = 0 , UseOnProcess = Success , NotUseOnProcess = 1 }

Protected Slots inherited from CBackend
virtual void	slotTimeOut ()
	a non-Qt event loop (that is, normal loop processing)， It call OnProcess(), and start timer.

Detailed Description

The CBackendSftpServer class.

Definition at line 18 of file BackendSftpServer.h.

Constructor & Destructor Documentation

◆ CBackendSftpServer()

CBackendSftpServer::CBackendSftpServer	(	COperateSftpServer *	pOperate = `nullptr`,
		bool	bStopSignal = `true`
	)

explicit

Definition at line 86 of file BackendSftpServer.cpp.

◆ ~CBackendSftpServer()

CBackendSftpServer::~CBackendSftpServer ( )

virtual

Definition at line 94 of file BackendSftpServer.cpp.

Member Function Documentation

◆ cbAuthPassword()

int CBackendSftpServer::cbAuthPassword	(	ssh_session	session,
		const char *	user,
		const char *	pass,
		void *	userdata
	)

staticprivate

Definition at line 436 of file BackendSftpServer.cpp.

◆ cbAuthPublickey()

int CBackendSftpServer::cbAuthPublickey	(	ssh_session	session,
		const char *	user,
		struct ssh_key_struct *	pubkey,
		char	signature_state,
		void *	userdata
	)

staticprivate

Definition at line 456 of file BackendSftpServer.cpp.

◆ cbChannelOpen()

ssh_channel CBackendSftpServer::cbChannelOpen	(	ssh_session	session,
		void *	userdata
	)

staticprivate

Definition at line 508 of file BackendSftpServer.cpp.

◆ DeleteClient()

int CBackendSftpServer::DeleteClient ( sClientData * pClient )

private

Definition at line 521 of file BackendSftpServer.cpp.

◆ GetSshBind()

ssh_bind CBackendSftpServer::GetSshBind ( QSocketNotifier * notifier )

private

Definition at line 312 of file BackendSftpServer.cpp.

◆ InitHostKey()

bool CBackendSftpServer::InitHostKey ( ssh_bind ssdBind )

private

Definition at line 245 of file BackendSftpServer.cpp.

◆ Listen()

int CBackendSftpServer::Listen	(	const QString &	szIp,
		qint16	nPort
	)

private

Definition at line 268 of file BackendSftpServer.cpp.

◆ OnClean()

int CBackendSftpServer::OnClean ( )

overrideprotectedvirtual

Clean.

See also: Stop()

Implements CBackend.

Definition at line 139 of file BackendSftpServer.cpp.

◆ OnInit()

CBackend::OnInitReturnValue CBackendSftpServer::OnInit ( )

overrideprotectedvirtual

Initialization.

Returns

CBackend::OnInitReturnValue

OnInitReturnValue::Fail: error
OnInitReturnValue::Success/OnInitReturnValueUseOnProcess: Use OnProcess() (non-Qt event loop)
OnInitReturnValue::NotUseOnProcess: Don't use OnProcess() (qt event loop)

See also: Start()

Implements CBackend.

Definition at line 99 of file BackendSftpServer.cpp.

◆ OnProcess()

int CBackendSftpServer::OnProcess ( )

overrideprotectedvirtual

Specific operation processing of plug-in.

Returns

>= 0: continue, Interval call time (msec)
= -1: stop
< -1: error code

See also: Start() slotTimeOut()

Reimplemented from CBackend.

Definition at line 184 of file BackendSftpServer.cpp.

◆ SendBanner()

void CBackendSftpServer::SendBanner	(	sClientData *	pClient,
		const QString &	user
	)

staticprivate

Definition at line 547 of file BackendSftpServer.cpp.

◆ slotDisconnect

void CBackendSftpServer::slotDisconnect	(	const QString &	szIp,
		const quint16	port
	)

overridevirtualslot

Definition at line 562 of file BackendSftpServer.cpp.

◆ slotNewConnection

void CBackendSftpServer::slotNewConnection ( )

privateslot

Definition at line 321 of file BackendSftpServer.cpp.

◆ WakeUp()

int CBackendSftpServer::WakeUp ( )

overrideprotectedvirtual

Wake up backend thread(background thread).

When it is block(a non-Qt event loop)

Note: The caller is main thread(UI thread)

Reimplemented from CBackend.

Definition at line 163 of file BackendSftpServer.cpp.

Member Data Documentation

◆ m_event

ssh_event CBackendSftpServer::m_event

private

Definition at line 41 of file BackendSftpServer.h.

◆ m_lstClients

QList<sClientData*> CBackendSftpServer::m_lstClients

private

Definition at line 61 of file BackendSftpServer.h.

◆ m_lstListen

QList<sBindData*> CBackendSftpServer::m_lstListen

private

Definition at line 47 of file BackendSftpServer.h.

◆ m_pPara

CParameterSftpServer* CBackendSftpServer::m_pPara

private

Definition at line 40 of file BackendSftpServer.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/SftpServer/BackendSftpServer.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/SftpServer/BackendSftpServer.cpp
