File transfer operate interface. More...

#include <OperateFileTransfer.h>

Inheritance diagram for COperateFileTransfer:

[legend]

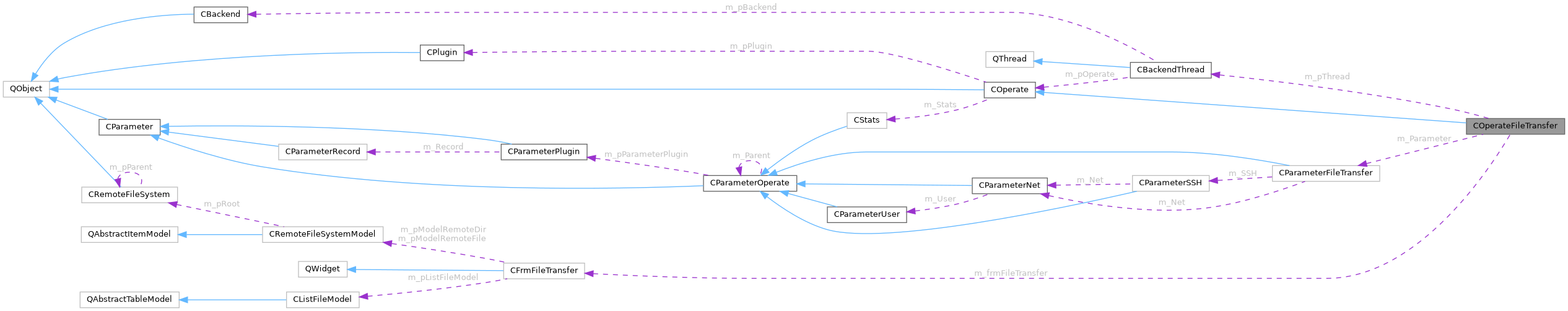

Collaboration diagram for COperateFileTransfer:

[legend]

Public Member Functions
	COperateFileTransfer (CPlugin *plugin)

virtual Q_INVOKABLE CBackend *	InstanceBackend ()
	New CBackend.

virtual const QString	Id () override
	Identity.

virtual const QString	Name () override
	Name.

virtual const QString	Description () override
	Description.

virtual const QString	Protocol () const override
	Protocol.

virtual const qint16	Version () const override
	Version.

virtual QWidget *	GetViewer () override
	Get Viewer.

virtual int	Start () override
	Start.

virtual int	Stop () override
	Stop.

CParameterFileTransfer *	GetParameter ()

Public Member Functions inherited from COperate
	COperate (CPlugin *plugin)

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

virtual CStats *	GetStats ()

virtual SecurityLevel	GetSecurityLevel ()

virtual QString	GetSecurityLevelString ()

virtual QColor	GetSecurityLevelColor ()

virtual const QIcon	Icon () const
	Icon.

virtual const QString	GetTypeName () const
	Get type name.

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

Protected Member Functions
virtual int	SetGlobalParameters (CParameterPlugin *pPara) override
	Apply the global parameters of the plug-in.

virtual int	Load (QSettings &set) override
	Load parameters.

virtual int	Save (QSettings &set) override
	Save parameters.

virtual int	Initial () override
	Initial parameters and resource.

virtual int	Clean () override
	Clean parameters and resource.

Protected Member Functions inherited from COperate
Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Private Slots
void	slotCopyUrlToClipboard (const QString &szPath)

Private Member Functions
virtual QDialog *	OnOpenDialogSettings (QWidget *parent) override
	Open settgins dialog.

Private Attributes
CFrmFileTransfer *	m_frmFileTransfer

CParameterFileTransfer	m_Parameter

CBackendThread *	m_pThread

Additional Inherited Members
Public Types inherited from COperate
enum class	SecurityLevel { No , Secure , NonSecureAuthentication , SecureChannel , Normal = SecureChannel , SecureAuthentication , Risky }

Signals inherited from COperate
void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Static Public Member Functions inherited from COperate
static QString	GetSecurityLevelString (SecurityLevel level)

static QColor	GetSecurityLevelColor (SecurityLevel level)

Protected Slots inherited from COperate
void	slotUpdateName ()

Static Protected Member Functions inherited from COperate
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Protected Attributes inherited from COperate
QMenu	m_Menu

QAction *	m_pActionSettings

Detailed Description

File transfer operate interface.

Definition at line 13 of file OperateFileTransfer.h.

Constructor & Destructor Documentation

◆ ~COperateFileTransfer()

COperateFileTransfer::~COperateFileTransfer ( )

virtual

Definition at line 30 of file OperateFileTransfer.cpp.

Member Function Documentation

◆ Clean()

int COperateFileTransfer::Clean ( )

overrideprotectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented from COperate.

Definition at line 77 of file OperateFileTransfer.cpp.

◆ Description()

const QString COperateFileTransfer::Description ( )

overridevirtual

Description.

Reimplemented from COperate.

Definition at line 160 of file OperateFileTransfer.cpp.

◆ GetParameter()

CParameterFileTransfer * COperateFileTransfer::GetParameter ( )

Definition at line 40 of file OperateFileTransfer.cpp.

◆ GetViewer()

QWidget * COperateFileTransfer::GetViewer ( )

overridevirtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implements COperate.

Definition at line 50 of file OperateFileTransfer.cpp.

◆ Id()

const QString COperateFileTransfer::Id ( )

overridevirtual

Identity.

Reimplemented from COperate.

Definition at line 203 of file OperateFileTransfer.cpp.

◆ Initial()

int COperateFileTransfer::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

See also: CManager::CreateOperate

Reimplemented from COperate.

Definition at line 55 of file OperateFileTransfer.cpp.

◆ InstanceBackend()

CBackend * COperateFileTransfer::InstanceBackend ( )

virtual

New CBackend.

the ownership is caller. if don't use, the caller must delete it.

Definition at line 35 of file OperateFileTransfer.cpp.

◆ Load()

int COperateFileTransfer::Load ( QSettings & set )

overrideprotectedvirtual

Load parameters.

Implements COperate.

Definition at line 122 of file OperateFileTransfer.cpp.

◆ Name()

const QString COperateFileTransfer::Name ( )

overridevirtual

Name.

Reimplemented from COperate.

Definition at line 136 of file OperateFileTransfer.cpp.

◆ OnOpenDialogSettings()

QDialog * COperateFileTransfer::OnOpenDialogSettings ( QWidget * parent )

overrideprivatevirtual

Open settgins dialog.

Parameters

parent the parent windows of the dialog of return

Returns: QDialog*: then QDialog must be allocated in heap memory, the ownership is caller.

See also: OpenDialogSettings

Implements COperate.

Definition at line 117 of file OperateFileTransfer.cpp.

◆ Protocol()

const QString COperateFileTransfer::Protocol ( ) const

overridevirtual

Protocol.

Reimplemented from COperate.

Definition at line 192 of file OperateFileTransfer.cpp.

◆ Save()

int COperateFileTransfer::Save ( QSettings & set )

overrideprotectedvirtual

Save parameters.

Implements COperate.

Definition at line 129 of file OperateFileTransfer.cpp.

◆ SetGlobalParameters()

int COperateFileTransfer::SetGlobalParameters ( CParameterPlugin * pPara )

overrideprotectedvirtual

Apply the global parameters of the plug-in.

Note: Call CParameterOperate::SetGlobalParameters to set the global parameters for the operation parameters, and connect the signals related to the global parameters.

See also: CManager::CreateOperate CParameterPlugin

Implements COperate.

Definition at line 112 of file OperateFileTransfer.cpp.

◆ slotCopyUrlToClipboard

void COperateFileTransfer::slotCopyUrlToClipboard ( const QString & szPath )

privateslot

Definition at line 226 of file OperateFileTransfer.cpp.

◆ Start()

int COperateFileTransfer::Start ( )

overridevirtual

Start.

Note: Only call by user, The plugin don't call it. When plugin is started, it emit sigRunning()

See also: sigRunning()

Implements COperate.

Definition at line 88 of file OperateFileTransfer.cpp.

◆ Stop()

int COperateFileTransfer::Stop ( )

overridevirtual

Stop.

Note: Only call by user, The plugin don't call it. When plugin is stopped, it emit sigFinished(). The caller receive the signal, then delete the object.

See also: sigFinished()

Implements COperate.

Definition at line 100 of file OperateFileTransfer.cpp.

◆ Version()

const qint16 COperateFileTransfer::Version ( ) const

overridevirtual

Version.

Implements COperate.

Definition at line 45 of file OperateFileTransfer.cpp.

Member Data Documentation

◆ m_frmFileTransfer

CFrmFileTransfer* COperateFileTransfer::m_frmFileTransfer

private

Definition at line 52 of file OperateFileTransfer.h.

◆ m_Parameter

CParameterFileTransfer COperateFileTransfer::m_Parameter

private

Definition at line 53 of file OperateFileTransfer.h.

◆ m_pThread

CBackendThread* COperateFileTransfer::m_pThread

private

Definition at line 54 of file OperateFileTransfer.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/FileTransfer/OperateFileTransfer.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/FileTransfer/OperateFileTransfer.cpp
