Inheritance diagram for COperateWebBrowser:

[legend]

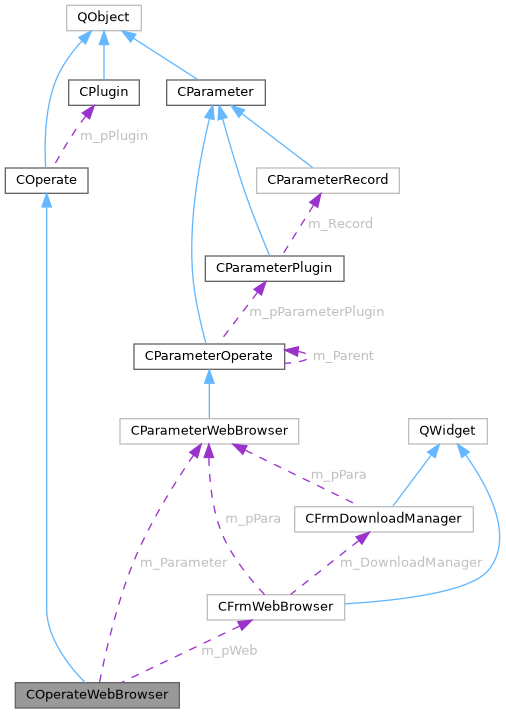

Collaboration diagram for COperateWebBrowser:

[legend]

Public Member Functions
	COperateWebBrowser (CPlugin *plugin)

virtual const QString	Name () override
	Name.

virtual const QIcon	Icon () const override
	Icon.

virtual const qint16	Version () const override
	Version.

virtual QWidget *	GetViewer () override
	Get Viewer.

virtual QMenu *	GetMenu (QWidget *parent=nullptr) override
	Get menu.

virtual int	Start () override
	Start.

virtual int	Stop () override
	Stop.

Public Member Functions inherited from COperate
	COperate (CPlugin *plugin)

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual CStats *	GetStats ()

virtual SecurityLevel	GetSecurityLevel ()

virtual QString	GetSecurityLevelString ()

virtual QColor	GetSecurityLevelColor ()

virtual const QString	Id ()
	Identity.

virtual const QString	Description ()
	Description.

virtual const QString	Protocol () const
	Protocol.

virtual const QString	GetTypeName () const
	Get type name.

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

Protected Member Functions
virtual int	SetGlobalParameters (CParameterPlugin *pPara) override
	Apply the global parameters of the plug-in.

virtual int	Initial () override
	Initial parameters and resource.

virtual int	Clean () override
	Clean parameters and resource.

virtual int	Load (QSettings &set) override
	Load parameters.

virtual int	Save (QSettings &set) override
	Save parameters.

Protected Member Functions inherited from COperate
Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Private Member Functions
virtual QDialog *	OnOpenDialogSettings (QWidget *parent) override
	Open settgins dialog.

Private Attributes
CFrmWebBrowser *	m_pWeb

CParameterWebBrowser	m_Parameter

Additional Inherited Members
Public Types inherited from COperate
enum class	SecurityLevel { No , Secure , NonSecureAuthentication , SecureChannel , Normal = SecureChannel , SecureAuthentication , Risky }

Signals inherited from COperate
void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigFullScreen (bool bFullScreen)
	Full screen.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Static Public Member Functions inherited from COperate
static QString	GetSecurityLevelString (SecurityLevel level)

static QColor	GetSecurityLevelColor (SecurityLevel level)

Protected Slots inherited from COperate
void	slotUpdateName ()

Static Protected Member Functions inherited from COperate
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Protected Attributes inherited from COperate
QMenu	m_Menu

QAction *	m_pActionSettings

Detailed Description

Definition at line 9 of file OperateWebBrowser.h.

Constructor & Destructor Documentation

◆ ~COperateWebBrowser()

COperateWebBrowser::~COperateWebBrowser ( )

virtual

Definition at line 15 of file OperateWebBrowser.cpp.

Member Function Documentation

◆ Clean()

int COperateWebBrowser::Clean ( )

overrideprotectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented from COperate.

Definition at line 105 of file OperateWebBrowser.cpp.

◆ GetMenu()

QMenu * COperateWebBrowser::GetMenu ( QWidget * parent = nullptr )

overridevirtual

Get menu.

Reimplemented from COperate.

Definition at line 53 of file OperateWebBrowser.cpp.

◆ GetViewer()

QWidget * COperateWebBrowser::GetViewer ( )

overridevirtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implements COperate.

Definition at line 48 of file OperateWebBrowser.cpp.

◆ Icon()

const QIcon COperateWebBrowser::Icon ( ) const

overridevirtual

Icon.

Reimplemented from COperate.

Definition at line 33 of file OperateWebBrowser.cpp.

◆ Initial()

int COperateWebBrowser::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

See also: CManager::CreateOperate

Reimplemented from COperate.

Definition at line 73 of file OperateWebBrowser.cpp.

◆ Load()

int COperateWebBrowser::Load ( QSettings & set )

overrideprotectedvirtual

Load parameters.

Implements COperate.

Definition at line 137 of file OperateWebBrowser.cpp.

◆ Name()

const QString COperateWebBrowser::Name ( )

overridevirtual

Name.

Reimplemented from COperate.

Definition at line 20 of file OperateWebBrowser.cpp.

◆ OnOpenDialogSettings()

QDialog * COperateWebBrowser::OnOpenDialogSettings ( QWidget * parent )

overrideprivatevirtual

Open settgins dialog.

Parameters

parent the parent windows of the dialog of return

Returns: QDialog*: then QDialog must be allocated in heap memory, the ownership is caller.

See also: OpenDialogSettings

Implements COperate.

Definition at line 67 of file OperateWebBrowser.cpp.

◆ Save()

int COperateWebBrowser::Save ( QSettings & set )

overrideprotectedvirtual

Save parameters.

Implements COperate.

Definition at line 146 of file OperateWebBrowser.cpp.

◆ SetGlobalParameters()

int COperateWebBrowser::SetGlobalParameters ( CParameterPlugin * pPara )

overrideprotectedvirtual

Apply the global parameters of the plug-in.

Note: Call CParameterOperate::SetGlobalParameters to set the global parameters for the operation parameters, and connect the signals related to the global parameters.

See also: CManager::CreateOperate CParameterPlugin

Implements COperate.

Definition at line 60 of file OperateWebBrowser.cpp.

◆ Start()

int COperateWebBrowser::Start ( )

overridevirtual

Start.

Note: Only call by user, The plugin don't call it. When plugin is started, it emit sigRunning()

See also: sigRunning()

Implements COperate.

Definition at line 116 of file OperateWebBrowser.cpp.

◆ Stop()

int COperateWebBrowser::Stop ( )

overridevirtual

Stop.

Note: Only call by user, The plugin don't call it. When plugin is stopped, it emit sigFinished(). The caller receive the signal, then delete the object.

See also: sigFinished()

Implements COperate.

Definition at line 127 of file OperateWebBrowser.cpp.

◆ Version()

const qint16 COperateWebBrowser::Version ( ) const

overridevirtual

Version.

Implements COperate.

Definition at line 43 of file OperateWebBrowser.cpp.

Member Data Documentation

◆ m_Parameter

CParameterWebBrowser COperateWebBrowser::m_Parameter

private

Definition at line 40 of file OperateWebBrowser.h.

◆ m_pWeb

CFrmWebBrowser* COperateWebBrowser::m_pWeb

private

Definition at line 39 of file OperateWebBrowser.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/WebBrowser/OperateWebBrowser.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/WebBrowser/OperateWebBrowser.cpp
