Remote desktop operate interface. More...

#include <OperateDesktop.h>

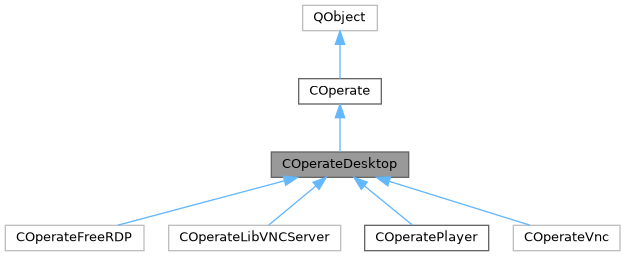

Inheritance diagram for COperateDesktop:

[legend]

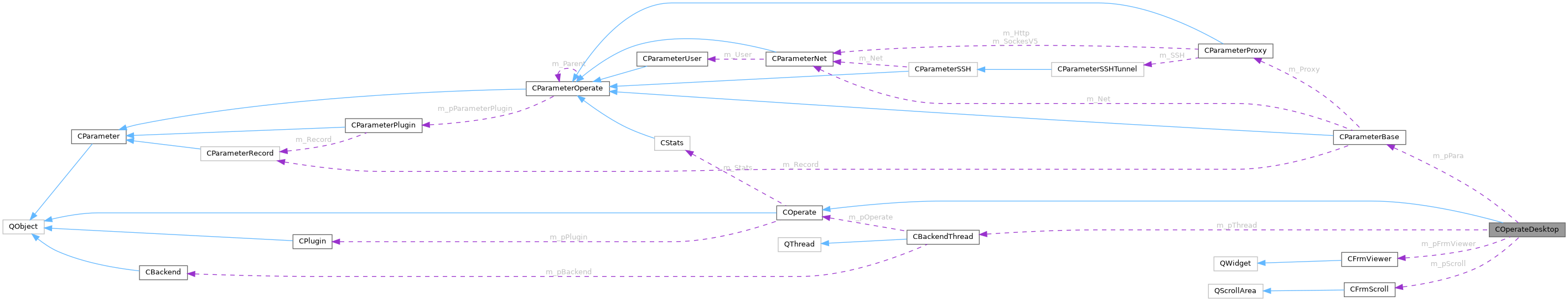

Collaboration diagram for COperateDesktop:

[legend]

Public Slots
virtual int	Start () override

virtual int	Stop () override

virtual void	slotScreenShot ()

Public Member Functions
	COperateDesktop (CPlugin *plugin)

virtual Q_INVOKABLE CBackend *	InstanceBackend ()=0
	New CBackend.

virtual CParameterBase *	GetParameter ()
	Get parameter.

virtual int	SetParameter (CParameterBase *p)
	Set parameter pointer.

virtual const QString	Id () override
	Identity.

virtual const QString	Name () override
	Name.

virtual const QString	Description () override
	Description.

virtual const qint16	Version () const override
	Version.

virtual QWidget *	GetViewer () override
	Get Viewer.

Public Member Functions inherited from COperate
	COperate (CPlugin *plugin)

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

virtual CStats *	GetStats ()

virtual SecurityLevel	GetSecurityLevel ()

virtual QString	GetSecurityLevelString ()

virtual QColor	GetSecurityLevelColor ()

virtual int	Start ()=0
	Start.

virtual int	Stop ()=0
	Stop.

virtual const QString	Protocol () const
	Protocol.

virtual const QIcon	Icon () const
	Icon.

virtual const QString	GetTypeName () const
	Get type name.

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

Protected Member Functions
virtual int	SetGlobalParameters (CParameterPlugin *pPara) override
	Apply the global parameters of the plug-in.

virtual int	Initial () override
	Initial parameters and resource.

virtual int	Clean () override
	Clean parameters and resource.

virtual int	Load (QSettings &set) override
	Load parameters.

virtual int	Save (QSettings &set) override
	Save parameters.

virtual int	InitialMenu ()

virtual QString	ServerName ()
	Current connect server name (remote desktop name, if not present, then IP:PORT).

Protected Member Functions inherited from COperate
Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Protected Attributes
QAction *	m_pMenuZoom

QAction *	m_pZoomToWindow

QAction *	m_pZoomAspectRatio

QAction *	m_pZoomOriginal

QAction *	m_pZoomIn

QAction *	m_pZoomOut

QSpinBox *	m_psbZoomFactor

QAction *	m_pScreenShot

Protected Attributes inherited from COperate
QMenu	m_Menu

QAction *	m_pActionSettings

Private Slots
void	slotValueChanged (int v)
	emit by zoom menu in the class

void	slotShortcutCtlAltDel ()

void	slotShortcutLock ()

virtual void	slotSetServerName (const QString &szName)

Private Member Functions
int	LoadAdaptWindows ()

Private Attributes
CParameterBase *	m_pPara

CBackendThread *	m_pThread

CFrmViewer *	m_pFrmViewer

CFrmScroll *	m_pScroll

QString	m_szServerName

Additional Inherited Members
Public Types inherited from COperate
enum class	SecurityLevel { No , Secure , NonSecureAuthentication , SecureChannel , Normal = SecureChannel , SecureAuthentication , Risky }

Signals inherited from COperate
void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigFullScreen (bool bFullScreen)
	Full screen.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Static Public Member Functions inherited from COperate
static QString	GetSecurityLevelString (SecurityLevel level)

static QColor	GetSecurityLevelColor (SecurityLevel level)

Protected Slots inherited from COperate
void	slotUpdateName ()

Static Protected Member Functions inherited from COperate
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Detailed Description

Remote desktop operate interface.

It starts a background thread by default. It implements a background thread to handle a operate. Can be used with plugins whose plugin interface derives from CPluginClient for operate is blocking model.

Principle: Start a background thread (CBackendThread) in Start() . Call InstanceBackend() in the thread to instantiate CBackend, and start the timer in CBackend::Start(). This timer is called in the background thread. Through the operation of the timer, start a non-Qt event loop (that is, normal loop processing. May block), See CBackend. And CBackend supports the Qt event (the signal-slot mechanism of QObject. no-block).

Sequen diagram:

Note

The interface only is implemented by plug-in
The specific plug-in needs to implement the following interface.

Implement InstanceConnect() . Generate a connection object. The connection object runs in a background thread.

See also: CBackend CBackendThread COperate CPlugin CFrmViewer

Definition at line 68 of file OperateDesktop.h.

Constructor & Destructor Documentation

◆ COperateDesktop()

COperateDesktop::COperateDesktop ( CPlugin * plugin )

explicit

Parameters

plugin The plugin pointer must be specified as the corresponding CPlugin derived class

Note: If request the global parameters of the plugin, Please instantiate the parameters and call COperateDesktop::SetParameter in the derived class( or Initial() ) to set the parameters pointer. If you are sure the parameter does not need CParameterClient. please overload the COperate::SetGlobalParameters in the derived class. don't set it. Add commentMore actions

See also: CManager::CreateConnecter SetGlobalParameters SetParameter CParameterOperate CParameterClient

◆ ~COperateDesktop()

COperateDesktop::~COperateDesktop ( )

virtual

Definition at line 35 of file OperateDesktop.cpp.

Member Function Documentation

◆ Clean()

int COperateDesktop::Clean ( )

overrideprotectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented from COperate.

Reimplemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

Definition at line 191 of file OperateDesktop.cpp.

◆ Description()

const QString COperateDesktop::Description ( )

overridevirtual

Description.

Reimplemented from COperate.

Definition at line 102 of file OperateDesktop.cpp.

◆ GetParameter()

CParameterBase * COperateDesktop::GetParameter ( )

virtual

Get parameter.

Definition at line 428 of file OperateDesktop.cpp.

◆ GetViewer()

QWidget * COperateDesktop::GetViewer ( )

overridevirtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implements COperate.

Definition at line 355 of file OperateDesktop.cpp.

◆ Id()

const QString COperateDesktop::Id ( )

overridevirtual

Identity.

Reimplemented from COperate.

Reimplemented in COperateVnc.

Definition at line 40 of file OperateDesktop.cpp.

◆ Initial()

int COperateDesktop::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

See also: CManager::CreateOperate

Reimplemented from COperate.

Reimplemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

Definition at line 168 of file OperateDesktop.cpp.

◆ InitialMenu()

int COperateDesktop::InitialMenu ( )

protectedvirtual

Definition at line 204 of file OperateDesktop.cpp.

◆ InstanceBackend()

virtual Q_INVOKABLE CBackend * COperateDesktop::InstanceBackend ( )

pure virtual

New CBackend.

the ownership is caller. if don't use, the caller must delete it.

Implemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

◆ Load()

int COperateDesktop::Load ( QSettings & set )

overrideprotectedvirtual

Load parameters.

Implements COperate.

Definition at line 498 of file OperateDesktop.cpp.

◆ LoadAdaptWindows()

int COperateDesktop::LoadAdaptWindows ( )

private

Definition at line 469 of file OperateDesktop.cpp.

◆ Name()

const QString COperateDesktop::Name ( )

overridevirtual

Name.

Reimplemented from COperate.

Definition at line 85 of file OperateDesktop.cpp.

◆ Save()

int COperateDesktop::Save ( QSettings & set )

overrideprotectedvirtual

Save parameters.

Implements COperate.

Definition at line 521 of file OperateDesktop.cpp.

◆ ServerName()

QString COperateDesktop::ServerName ( )

protectedvirtual

Current connect server name (remote desktop name, if not present, then IP:PORT).

eg: Server name or Ip:Port

Returns: Current connect server name.

Reimplemented in COperateVnc.

Definition at line 614 of file OperateDesktop.cpp.

◆ SetGlobalParameters()

int COperateDesktop::SetGlobalParameters ( CParameterPlugin * pPara )

overrideprotectedvirtual

Apply the global parameters of the plug-in.

Note: Call CParameterOperate::SetGlobalParameters to set the global parameters for the operation parameters, and connect the signals related to the global parameters.

See also: CManager::CreateOperate CParameterPlugin

Implements COperate.

Definition at line 388 of file OperateDesktop.cpp.

◆ SetParameter()

int COperateDesktop::SetParameter ( CParameterBase * p )

virtual

Set parameter pointer.

Note: establishes the parameter first, and then calls this function in the constructor or Initial() to set the parameter pointer

Definition at line 433 of file OperateDesktop.cpp.

◆ slotScreenShot

void COperateDesktop::slotScreenShot ( )

virtualslot

Definition at line 574 of file OperateDesktop.cpp.

◆ slotSetServerName

void COperateDesktop::slotSetServerName ( const QString & szName )

privatevirtualslot

Note: The slot only is used by CBackendDesktop::SetConnect()

Definition at line 635 of file OperateDesktop.cpp.

◆ slotShortcutCtlAltDel

void COperateDesktop::slotShortcutCtlAltDel ( )

privateslot

Definition at line 589 of file OperateDesktop.cpp.

◆ slotShortcutLock

void COperateDesktop::slotShortcutLock ( )

privateslot

Definition at line 602 of file OperateDesktop.cpp.

◆ slotValueChanged

void COperateDesktop::slotValueChanged ( int v )

privateslot

emit by zoom menu in the class

Definition at line 566 of file OperateDesktop.cpp.

◆ Start

int COperateDesktop::Start ( )

overridevirtualslot

Definition at line 360 of file OperateDesktop.cpp.

◆ Stop

int COperateDesktop::Stop ( )

overridevirtualslot

Definition at line 375 of file OperateDesktop.cpp.

◆ Version()

const qint16 COperateDesktop::Version ( ) const

overridevirtual

Version.

Implements COperate.

Reimplemented in COperateFreeRDP, COperateLibVNCServer, COperatePlayer, and COperateVnc.

Definition at line 163 of file OperateDesktop.cpp.

Member Data Documentation

◆ m_pFrmViewer

CFrmViewer* COperateDesktop::m_pFrmViewer

private

Definition at line 160 of file OperateDesktop.h.

◆ m_pMenuZoom

QAction* COperateDesktop::m_pMenuZoom

protected

Definition at line 187 of file OperateDesktop.h.

◆ m_pPara

CParameterBase* COperateDesktop::m_pPara

private

Definition at line 158 of file OperateDesktop.h.

◆ m_psbZoomFactor

QSpinBox* COperateDesktop::m_psbZoomFactor

protected

Definition at line 193 of file OperateDesktop.h.

◆ m_pScreenShot

QAction* COperateDesktop::m_pScreenShot

protected

Definition at line 194 of file OperateDesktop.h.

◆ m_pScroll

CFrmScroll* COperateDesktop::m_pScroll

private

Definition at line 161 of file OperateDesktop.h.

◆ m_pThread

CBackendThread* COperateDesktop::m_pThread

private

Definition at line 159 of file OperateDesktop.h.

◆ m_pZoomAspectRatio

QAction* COperateDesktop::m_pZoomAspectRatio

protected

Definition at line 189 of file OperateDesktop.h.

◆ m_pZoomIn

QAction* COperateDesktop::m_pZoomIn

protected

Definition at line 191 of file OperateDesktop.h.

◆ m_pZoomOriginal

QAction* COperateDesktop::m_pZoomOriginal

protected

Definition at line 190 of file OperateDesktop.h.

◆ m_pZoomOut

QAction* COperateDesktop::m_pZoomOut

protected

Definition at line 192 of file OperateDesktop.h.

◆ m_pZoomToWindow

QAction* COperateDesktop::m_pZoomToWindow

protected

Definition at line 188 of file OperateDesktop.h.

◆ m_szServerName

QString COperateDesktop::m_szServerName

private

Definition at line 177 of file OperateDesktop.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/OperateDesktop.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/OperateDesktop.cpp

Public Slots

Public Member Functions

Protected Member Functions

Protected Attributes

Private Slots

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ COperateDesktop()

◆ ~COperateDesktop()

Member Function Documentation

◆ Clean()

◆ Description()

◆ GetParameter()

◆ GetViewer()

◆ Id()

◆ Initial()

◆ InitialMenu()

◆ InstanceBackend()

◆ Load()

◆ LoadAdaptWindows()

◆ Name()

◆ Save()

◆ ServerName()

◆ SetGlobalParameters()

◆ SetParameter()

◆ slotScreenShot

◆ slotSetServerName

◆ slotShortcutCtlAltDel

◆ slotShortcutLock

◆ slotValueChanged

◆ Start

◆ Stop

◆ Version()

Member Data Documentation

◆ m_pFrmViewer

◆ m_pMenuZoom

◆ m_pPara

◆ m_psbZoomFactor

◆ m_pScreenShot

◆ m_pScroll

◆ m_pThread

◆ m_pZoomAspectRatio

◆ m_pZoomIn

◆ m_pZoomOriginal

◆ m_pZoomOut

◆ m_pZoomToWindow

◆ m_szServerName
