Inheritance diagram for CScreenCapture:

[legend]

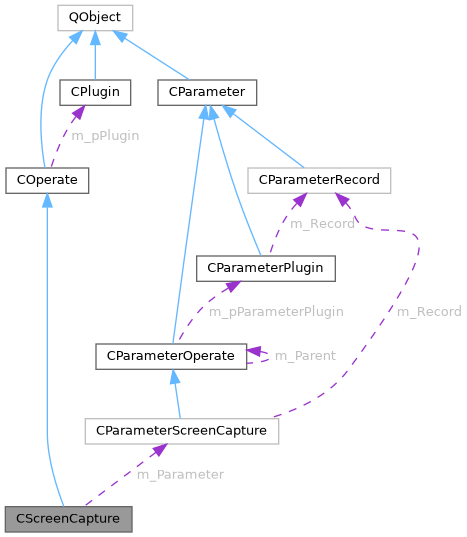

Collaboration diagram for CScreenCapture:

[legend]

Public Slots
virtual int	Start () override

virtual int	Stop () override

Public Member Functions
	CScreenCapture (CPlugin *plugin)

virtual QWidget *	GetViewer () override
	Get Viewer.

virtual const qint16	Version () const override
	Version.

virtual bool	eventFilter (QObject watched, QEvent event) override

Public Member Functions inherited from COperate
	COperate (CPlugin *plugin)

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

virtual SecurityLevel	GetSecurityLevel ()

virtual QString	GetSecurityLevelString ()

virtual QColor	GetSecurityLevelColor ()

virtual int	Start ()=0
	Start.

virtual int	Stop ()=0
	Stop.

virtual const QString	Id ()
	Identity.

virtual const QString	Name ()
	Name.

virtual const QString	Description ()
	Description.

virtual const QString	Protocol () const
	Protocol.

virtual const QIcon	Icon () const
	Icon.

virtual const QString	GetTypeName () const
	Get type name.

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

Protected Member Functions
virtual int	Initial () override
	Initial parameters and resource.

virtual int	Clean () override
	Clean parameters and resource.

virtual int	SetGlobalParameters (CParameterPlugin *pPara) override
	Apply the global parameters of the plug-in.

Protected Member Functions inherited from COperate
Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

virtual int	Load (QSettings &set)
	Load parameters.

virtual int	Save (QSettings &set)
	Save parameters.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Private Slots
virtual int	slotStart ()

virtual int	slotStop ()

Private Member Functions
virtual QDialog *	OnOpenDialogSettings (QWidget *parent) override
	Open settgins dialog.

Private Attributes
QVideoWidget *	m_pWidget

CParameterScreenCapture	m_Parameter

QScreenCapture	m_ScreenCapture

QWindowCapture	m_WindowCapture

QMediaCaptureSession	m_CaptureSessioin

QMediaRecorder	m_Recorder

QImageCapture	m_ImageCapture

QString	m_szRecordFile

Additional Inherited Members
Public Types inherited from COperate
enum class	SecurityLevel { No , Secure , NonSecureAuthentication , SecureChannel , Normal = SecureChannel , SecureAuthentication , Risky }

Signals inherited from COperate
void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Static Public Member Functions inherited from COperate
static QString	GetSecurityLevelString (SecurityLevel level)

static QColor	GetSecurityLevelColor (SecurityLevel level)

Static Protected Member Functions inherited from COperate
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Protected Attributes inherited from COperate
QMenu	m_Menu

QAction *	m_pActionSettings

Detailed Description

Definition at line 19 of file ScreenCapture.h.

Constructor & Destructor Documentation

◆ ~CScreenCapture()

CScreenCapture::~CScreenCapture ( )

virtual

Definition at line 22 of file ScreenCapture.cpp.

Member Function Documentation

◆ Clean()

int CScreenCapture::Clean ( )

overrideprotectedvirtual

Clean parameters and resource.

See also: CManager::DeleteOperate

Reimplemented from COperate.

Definition at line 154 of file ScreenCapture.cpp.

◆ eventFilter()

bool CScreenCapture::eventFilter	(	QObject *	watched,
		QEvent *	event
	)

overridevirtual

Definition at line 247 of file ScreenCapture.cpp.

◆ GetViewer()

QWidget * CScreenCapture::GetViewer ( )

overridevirtual

Get Viewer.

Returns: QWidget*: the ownership is a instance of this class or its derivative class

Note: If you implement the view yourself, you need to disable the view at the beginning and allow the view after sigRun.

See also: sigRunning CFrmViewer::CFrmViewer

Implements COperate.

Definition at line 161 of file ScreenCapture.cpp.

◆ Initial()

int CScreenCapture::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

See also: CManager::CreateOperate

Reimplemented from COperate.

Definition at line 32 of file ScreenCapture.cpp.

◆ OnOpenDialogSettings()

QDialog * CScreenCapture::OnOpenDialogSettings ( QWidget * parent )

overrideprivatevirtual

Open settgins dialog.

Parameters

parent the parent windows of the dialog of return

Returns: QDialog*: then QDialog must be allocated in heap memory, the ownership is caller.

See also: OpenDialogSettings

Implements COperate.

Definition at line 166 of file ScreenCapture.cpp.

◆ SetGlobalParameters()

int CScreenCapture::SetGlobalParameters ( CParameterPlugin * pPara )

overrideprotectedvirtual

Apply the global parameters of the plug-in.

Note: If you don't need the global parameters of the plugin, override it in the derived class and ignore.

See also: CManager::CreateOperate CParameterPlugin

Implements COperate.

Definition at line 266 of file ScreenCapture.cpp.

◆ slotStart

int CScreenCapture::slotStart ( )

privatevirtualslot

Definition at line 187 of file ScreenCapture.cpp.

◆ slotStop

int CScreenCapture::slotStop ( )

privatevirtualslot

Definition at line 233 of file ScreenCapture.cpp.

◆ Start

int CScreenCapture::Start ( )

overridevirtualslot

Definition at line 171 of file ScreenCapture.cpp.

◆ Stop

int CScreenCapture::Stop ( )

overridevirtualslot

Definition at line 179 of file ScreenCapture.cpp.

◆ Version()

const qint16 CScreenCapture::Version ( ) const

overridevirtual

Version.

Implements COperate.

Definition at line 27 of file ScreenCapture.cpp.

Member Data Documentation

◆ m_CaptureSessioin

QMediaCaptureSession CScreenCapture::m_CaptureSessioin

private

Definition at line 49 of file ScreenCapture.h.

◆ m_ImageCapture

QImageCapture CScreenCapture::m_ImageCapture

private

Definition at line 51 of file ScreenCapture.h.

◆ m_Parameter

CParameterScreenCapture CScreenCapture::m_Parameter

private

Definition at line 46 of file ScreenCapture.h.

◆ m_pWidget

QVideoWidget* CScreenCapture::m_pWidget

private

Definition at line 45 of file ScreenCapture.h.

◆ m_Recorder

QMediaRecorder CScreenCapture::m_Recorder

private

Definition at line 50 of file ScreenCapture.h.

◆ m_ScreenCapture

QScreenCapture CScreenCapture::m_ScreenCapture

private

Definition at line 47 of file ScreenCapture.h.

◆ m_szRecordFile

QString CScreenCapture::m_szRecordFile

private

Definition at line 52 of file ScreenCapture.h.

◆ m_WindowCapture

QWindowCapture CScreenCapture::m_WindowCapture

private

Definition at line 48 of file ScreenCapture.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/ScreenCapture/ScreenCapture.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/ScreenCapture/ScreenCapture.cpp
