Inheritance diagram for CTerminal:

[legend]

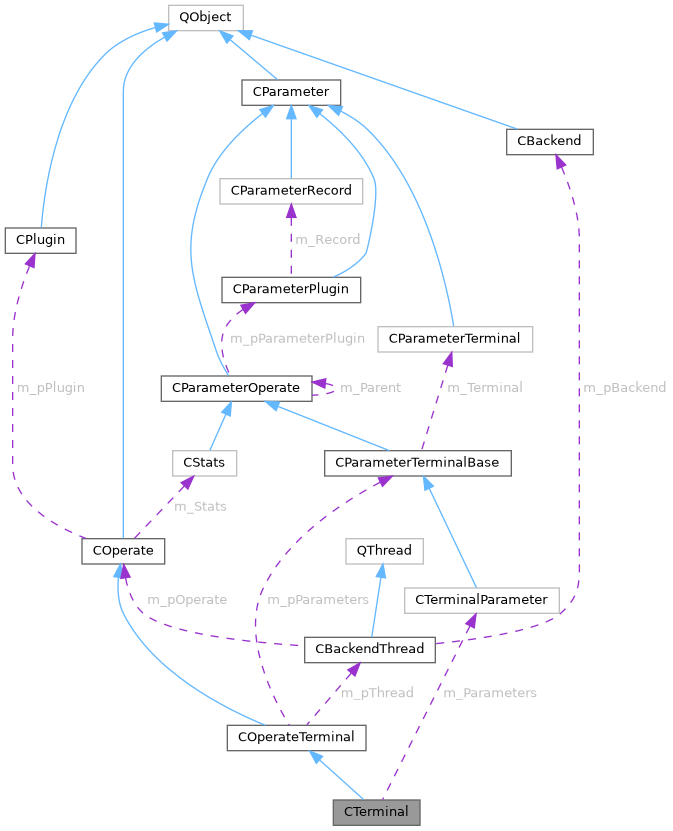

Collaboration diagram for CTerminal:

[legend]

Public Member Functions
	CTerminal (CPlugin *parent)

virtual const QString	Name () override
	Name.

virtual const QString	Description () override
	Description.

virtual CBackend *	InstanceBackend () override
	New CBackend.

virtual int	Start () override

virtual int	Stop () override

virtual int	SetParameter (CParameterTerminalBase *pPara) override
	Set parameter pointer.

CStats *	GetStats ()

Public Member Functions inherited from COperateTerminal
	COperateTerminal (CPlugin *parent)

virtual CParameterTerminalBase *	GetParameter ()
	Get parameters.

virtual const QString	Id () override
	Identity.

virtual const qint16	Version () const override
	Version.

QWidget *	GetViewer () override
	Get Viewer.

Public Member Functions inherited from COperate
	COperate (CPlugin *plugin)

virtual int	OpenDialogSettings (QWidget *parent=nullptr)
	Open settings dialog.

virtual QMenu *	GetMenu (QWidget *parent=nullptr)
	Get menu.

virtual SecurityLevel	GetSecurityLevel ()

virtual QString	GetSecurityLevelString ()

virtual QColor	GetSecurityLevelColor ()

virtual const QString	Protocol () const
	Protocol.

virtual const QIcon	Icon () const
	Icon.

virtual const QString	GetTypeName () const
	Get type name.

virtual QString	GetSettingsFile ()

virtual int	SetSettingsFile (const QString &szFile)

Protected Member Functions
virtual int	Initial () override
	Initial parameters and resource.

virtual void	SetShotcuts (bool bEnable) override

Protected Member Functions inherited from COperateTerminal
virtual int	Clean () override
	Clean parameters and resource.

virtual int	SetGlobalParameters (CParameterPlugin *pPara) override
	Apply the global parameters of the plug-in.

int	WriteTerminal (const char *buf, int len)

virtual int	Load (QSettings &set) override
	Load parameters.

virtual int	Save (QSettings &set) override
	Save parameters.

Protected Member Functions inherited from COperate
Q_INVOKABLE CPlugin *	GetPlugin () const
	Get plugin.

virtual Q_INVOKABLE int	Load (QString szFile=QString())
	Load parameters from file.

virtual Q_INVOKABLE int	Save (QString szFile=QString())
	Save parameters to file.

Private Slots
void	slotTerminalTitleChanged ()

Private Member Functions
virtual QDialog *	OnOpenDialogSettings (QWidget *parent) override
	Open settgins dialog.

Private Attributes
CTerminalParameter	m_Parameters

QAction *	m_pOpenFolderWithExplorer

QAction *	m_pCopyToClipboard

Additional Inherited Members
Public Types inherited from COperate
enum class	SecurityLevel { No , Secure , NonSecureAuthentication , SecureChannel , Normal = SecureChannel , SecureAuthentication , Risky }

Public Slots inherited from COperateTerminal
Signals inherited from COperate
void	sigRunning ()
	Start success signal.

void	sigStop ()
	Notify the user to stop.

void	sigFinished ()
	Successful disconnection signal.

void	sigViewerFocusIn (QWidget *pView)
	The view is focus.

void	sigFullScreen (bool bFullScreen)
	Full screen.

void	sigUpdateName (const QString &szName)

void	sigUpdateParameters (COperate *pOperate)
	Update parameters, notify application to save or show parameters.

void	sigError (const int nError, const QString &szError)
	Triggered when an error is generated.

void	sigInformation (const QString &szInfo)
	Show information in main windows.

void	sigShowMessageBox (const QString &title, const QString &message, const QMessageBox::Icon &icon=QMessageBox::Information)
	Trigger the display of a message dialog (QMessageBox) in the main thread from a background thread without blocking the background thread.

void	sigClipBoardChanged ()

Static Public Member Functions inherited from COperateTerminal
static const QString	Details ()

Static Public Member Functions inherited from COperate
static QString	GetSecurityLevelString (SecurityLevel level)

static QColor	GetSecurityLevelColor (SecurityLevel level)

Protected Slots inherited from COperateTerminal
void	slotUpdateParameter (COperate *pOperate)

Protected Slots inherited from COperate
void	slotUpdateName ()

Static Protected Member Functions inherited from COperate
static QObject *	createObject (const QString &className, QObject *parent=NULL)

Protected Attributes inherited from COperateTerminal
QTermWidget *	m_pTerminal

CBackendThread *	m_pThread

QAction *	m_pActionOpenWithSystem

QAction *	m_pActionFind

Protected Attributes inherited from COperate
QMenu	m_Menu

QAction *	m_pActionSettings

Detailed Description

Definition at line 7 of file Terminal.h.

Constructor & Destructor Documentation

◆ ~CTerminal()

CTerminal::~CTerminal ( )

overridevirtual

Definition at line 23 of file Terminal.cpp.

Member Function Documentation

◆ Description()

const QString CTerminal::Description ( )

overridevirtual

Description.

Reimplemented from COperateTerminal.

Definition at line 138 of file Terminal.cpp.

◆ GetStats()

CStats * CTerminal::GetStats ( )

virtual

Reimplemented from COperateTerminal.

Definition at line 195 of file Terminal.cpp.

◆ Initial()

int CTerminal::Initial ( )

overrideprotectedvirtual

Initial parameters and resource.

See also: CManager::CreateOperate

Reimplemented from COperateTerminal.

Definition at line 88 of file Terminal.cpp.

◆ InstanceBackend()

CBackend * CTerminal::InstanceBackend ( )

overridevirtual

New CBackend.

the ownership is caller. if don't use, the caller must delete it.

Implements COperateTerminal.

Definition at line 83 of file Terminal.cpp.

◆ Name()

const QString CTerminal::Name ( )

overridevirtual

Name.

Reimplemented from COperateTerminal.

Definition at line 117 of file Terminal.cpp.

◆ OnOpenDialogSettings()

QDialog * CTerminal::OnOpenDialogSettings ( QWidget * parent )

overrideprivatevirtual

Open settgins dialog.

Parameters

parent the parent windows of the dialog of return

Returns: QDialog*: then QDialog must be allocated in heap memory, the ownership is caller.

See also: OpenDialogSettings

Implements COperate.

Definition at line 28 of file Terminal.cpp.

◆ SetParameter()

int CTerminal::SetParameter ( CParameterTerminalBase * pPara )

overridevirtual

Set parameter pointer.

Note: Establish the parameter object first, and then calls this function in the constructor or Initial() to set the parameter pointer

Reimplemented from COperateTerminal.

Definition at line 176 of file Terminal.cpp.

◆ SetShotcuts()

void CTerminal::SetShotcuts ( bool bEnable )

overrideprotectedvirtual

Reimplemented from COperateTerminal.

Definition at line 126 of file Terminal.cpp.

◆ slotTerminalTitleChanged

void CTerminal::slotTerminalTitleChanged ( )

privateslot

Definition at line 189 of file Terminal.cpp.

◆ Start()

int CTerminal::Start ( )

overridevirtual

Reimplemented from COperateTerminal.

Definition at line 33 of file Terminal.cpp.

◆ Stop()

int CTerminal::Stop ( )

overridevirtual

Reimplemented from COperateTerminal.

Definition at line 69 of file Terminal.cpp.

Member Data Documentation

◆ m_Parameters

CTerminalParameter CTerminal::m_Parameters

private

Definition at line 33 of file Terminal.h.

◆ m_pCopyToClipboard

QAction* CTerminal::m_pCopyToClipboard

private

Definition at line 35 of file Terminal.h.

◆ m_pOpenFolderWithExplorer

QAction* CTerminal::m_pOpenFolderWithExplorer

private

Definition at line 34 of file Terminal.h.

The documentation for this class was generated from the following files:

/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/Terminal/Terminal.h
/home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Plugins/Terminal/Terminal.cpp
