CParameterDesktop Class Reference

The interface of remote desktop base parameters. More...

#include <ParameterDesktop.h>

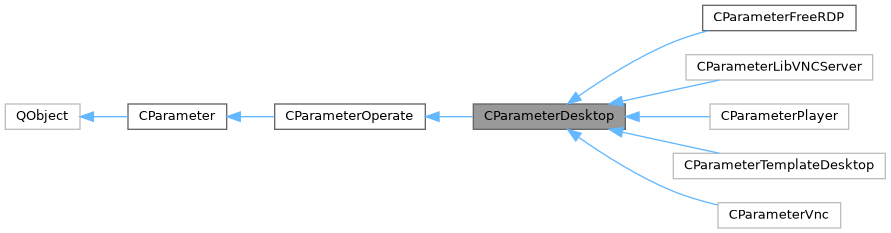

Inheritance diagram for CParameterDesktop:

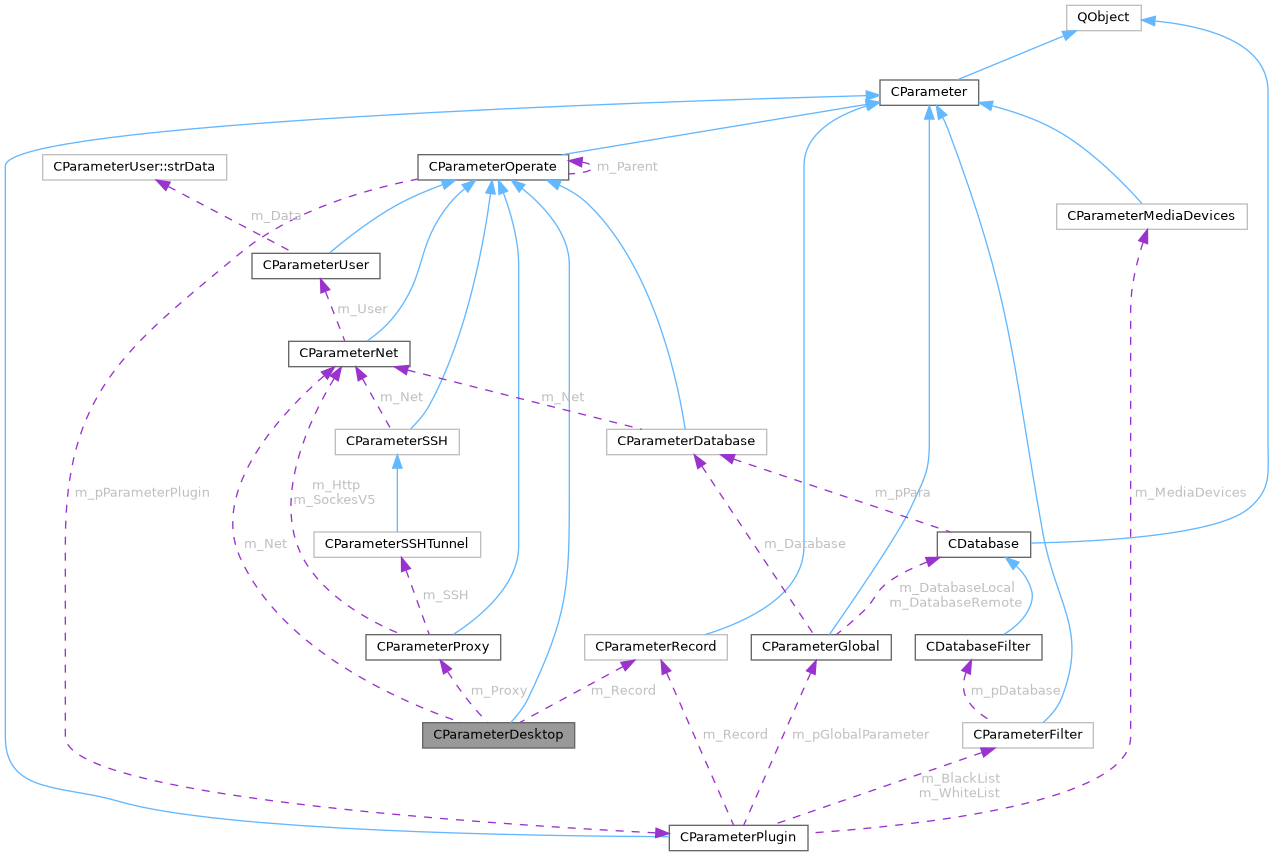

Collaboration diagram for CParameterDesktop:

Signals
void	sigShowServerNameChanged ()
void	sigEnableInputMethod (bool bEnable)
void	sigAdaptWindowsChanged (CFrmViewer::ADAPT_WINDOWS aw)
void	sigZoomFactorChanged (double newZoomFactor)
Signals inherited from CParameterOperate
void	sigSetPluginParameters ()
	Only used by this class.
void	sigNameChanged (const QString &name=QString())
Signals inherited from CParameter
void	sigChanged ()
	emit when the parameter changes Usually if required, the corresponding parameter corresponds to a change event.

Public Member Functions
	CParameterDesktop (QObject *parent=nullptr)
	CParameterDesktop (CParameterOperate *parent, const QString &szPrefix=QString())
const QString	GetServerName () const
void	SetServerName (const QString &szName)
bool	GetShowServerName () const
void	SetShowServerName (bool NewShowServerName)
bool	GetOnlyView () const
void	SetOnlyView (bool only)
const bool	GetLocalCursor () const
void	SetLocalCursor (bool cursor)
const bool	GetCursorPosition () const
void	SetCursorPosition (bool pos)
virtual const bool	GetClipboard () const
virtual void	SetClipboard (bool c)
bool	GetSupportsDesktopResize () const
void	SetSupportsDesktopResize (bool newSupportsDesktopResize)
bool	GetLedState () const
void	SetLedState (bool state)
bool	GetEnableLocalInputMethod () const
void	SetEnableLocalInputMethod (bool enable)
CFrmViewer::ADAPT_WINDOWS	GetAdaptWindows ()
void	SetAdaptWindows (CFrmViewer::ADAPT_WINDOWS aw)
double	GetZoomFactor () const
void	SetZoomFactor (double newZoomFactor)
Public Member Functions inherited from CParameterOperate
	CParameterOperate (QObject *parent, const QString &szPrefix=QString())
CParameterPlugin *	GetPluginParameters ()
	Get CParameterPlugin.
int	SetPluginParameters (CParameterPlugin *p)
const QString	GetName () const
void	SetName (const QString &szName)
int	LoadPassword (const QString &szTitle, const QString &szKey, QString &password, QSettings &set)
	Restore password.
int	SavePassword (const QString &szKey, const QString &password, QSettings &set, bool bSave=false)
Public Member Functions inherited from CParameter
	CParameter (QObject *parent, const QString &szPrefix=QString())
virtual int	Load (QString szFile=QString())
	Load from file.
virtual int	Save (QString szFile=QString(), bool bForce=true)
	Save to file.
virtual int	Load (QSettings &set)
	Load from QSettings.
virtual int	Save (QSettings &set, bool bForce=true)
	Save to QSettings.
virtual bool	CheckValidity ()
	Check whether the parameter is valid to decide whether to use or save the parameter.

Public Attributes
CParameterNet	m_Net
CParameterProxy	m_Proxy
CParameterRecord	m_Record

Protected Member Functions
virtual int	OnLoad (QSettings &set) override
virtual int	OnSave (QSettings &set) override
virtual void	slotSetPluginParameters () override
	Call after set CParameterPlugin.
Protected Member Functions inherited from CParameterOperate
QByteArray	PasswordSum (const std::string &password, const std::string &key)
Protected Member Functions inherited from CParameter
virtual bool	OnCheckValidity ()
	Check validity.
int	SetModified (bool bModified=true)
	When setting parameters, if there is a modification, it is called.
bool	GetModified ()
	Whether the parameters have been modified.

Properties
QString	Name
QString	ServerName
bool	ShowServerName
bool	OnlyView
bool	LocalCursor
CFrmViewer::ADAPT_WINDOWS	AdaptWindows
double	ZoomFactor
Properties inherited from CParameter
bool	Modified

Private Member Functions
int	Init ()

Private Attributes
QString	m_szServerName
bool	m_bShowServerName
bool	m_bOnlyView
bool	m_bLocalCursor
bool	m_bCursorPosition
bool	m_bClipboard
bool	m_bSupportsDesktopResize
bool	m_bLedState
bool	m_bEnableLocalInputMethod
CFrmViewer::ADAPT_WINDOWS	m_AdaptWindows
double	m_dbZoomFactor

Additional Inherited Members

Protected Slots inherited from CParameterOperate

Detailed Description

The interface of remote desktop base parameters.

include base parameters(network etc). All plug-in remote desktop parameters should be derived from this class.

Use remote desktop parameter

• The plugins have some common parameters (e.g., network address, etc.), please derive the plugin parameters from CParameterDesktop.

  class CParameterFreeRDP : public CParameterDesktop

• Instantiate the parameters in the constructor of the derived class of COperate.

      CParameterFreeRDP m_ParameterFreeRdp;

• Call COperate::SetParameter to set

  int COperateFreeRDP::Initial()
  {
      qDebug(log) << Q_FUNC_INFO;
      int nRet = 0;
      nRet = COperateDesktop::Initial();
      if(nRet) return nRet;
      nRet = SetParameter(&m_ParameterFreeRdp);
      return nRet;
  }

• Because COperate is running main thread(UI thread), so that the parameter is running main thread.

Definition at line 45 of file ParameterDesktop.h.

Constructor & Destructor Documentation

CParameterDesktop()

CParameterDesktop::CParameterDesktop ( CParameterOperate *  parent, const QString &  szPrefix = QString()  )

explicit

Definition at line 19 of file ParameterDesktop.cpp.

Member Function Documentation

GetAdaptWindows()

CFrmViewer::ADAPT_WINDOWS CParameterDesktop::GetAdaptWindows

(

)

Definition at line 184 of file ParameterDesktop.cpp.

GetClipboard()

const bool CParameterDesktop::GetClipboard ( ) const

virtual

Definition at line 145 of file ParameterDesktop.cpp.

GetCursorPosition()

const bool CParameterDesktop::GetCursorPosition

(

)

const

Definition at line 132 of file ParameterDesktop.cpp.

GetEnableLocalInputMethod()

bool CParameterDesktop::GetEnableLocalInputMethod

(

)

const

Definition at line 232 of file ParameterDesktop.cpp.

GetLedState()

bool CParameterDesktop::GetLedState

(

)

const

Definition at line 171 of file ParameterDesktop.cpp.

GetLocalCursor()

const bool CParameterDesktop::GetLocalCursor

(

)

const

Definition at line 119 of file ParameterDesktop.cpp.

GetOnlyView()

bool CParameterDesktop::GetOnlyView

(

)

const

Definition at line 106 of file ParameterDesktop.cpp.

GetServerName()

const QString CParameterDesktop::GetServerName

(

)

const

Definition at line 79 of file ParameterDesktop.cpp.

GetShowServerName()

bool CParameterDesktop::GetShowServerName

(

)

const

Definition at line 92 of file ParameterDesktop.cpp.

GetSupportsDesktopResize()

bool CParameterDesktop::GetSupportsDesktopResize

(

)

const

Definition at line 158 of file ParameterDesktop.cpp.

GetZoomFactor()

double CParameterDesktop::GetZoomFactor

(

)

const

Definition at line 198 of file ParameterDesktop.cpp.

Init()

int CParameterDesktop::Init ( )

private

Definition at line 29 of file ParameterDesktop.cpp.

OnLoad()

int CParameterDesktop::OnLoad ( QSettings &  set )

overrideprotectedvirtual

Reimplemented from CParameterOperate.

Definition at line 43 of file ParameterDesktop.cpp.

OnSave()

int CParameterDesktop::OnSave ( QSettings &  set )

overrideprotectedvirtual

Reimplemented from CParameterOperate.

Definition at line 63 of file ParameterDesktop.cpp.

SetAdaptWindows()

void CParameterDesktop::SetAdaptWindows

(

CFrmViewer::ADAPT_WINDOWS

aw

)

Definition at line 189 of file ParameterDesktop.cpp.

SetClipboard()

void CParameterDesktop::SetClipboard ( bool  c )

virtual

Definition at line 150 of file ParameterDesktop.cpp.

SetCursorPosition()

void CParameterDesktop::SetCursorPosition

(

bool

pos

)

Definition at line 137 of file ParameterDesktop.cpp.

SetEnableLocalInputMethod()

void CParameterDesktop::SetEnableLocalInputMethod

(

bool

enable

)

Definition at line 237 of file ParameterDesktop.cpp.

SetLedState()

void CParameterDesktop::SetLedState

(

bool

state

)

Definition at line 176 of file ParameterDesktop.cpp.

SetLocalCursor()

void CParameterDesktop::SetLocalCursor

(

bool

cursor

)

Definition at line 124 of file ParameterDesktop.cpp.

SetOnlyView()

void CParameterDesktop::SetOnlyView

(

bool

only

)

Definition at line 111 of file ParameterDesktop.cpp.

SetServerName()

void CParameterDesktop::SetServerName

(

const QString &

szName

)

Definition at line 84 of file ParameterDesktop.cpp.

SetShowServerName()

void CParameterDesktop::SetShowServerName

(

bool

NewShowServerName

)

Definition at line 97 of file ParameterDesktop.cpp.

SetSupportsDesktopResize()

void CParameterDesktop::SetSupportsDesktopResize

(

bool

newSupportsDesktopResize

)

Definition at line 163 of file ParameterDesktop.cpp.

SetZoomFactor()

void CParameterDesktop::SetZoomFactor

(

double

newZoomFactor

)

Definition at line 203 of file ParameterDesktop.cpp.

slotSetPluginParameters()

void CParameterDesktop::slotSetPluginParameters ( )

overrideprotectedvirtual

Call after set CParameterPlugin.

Used to initialize operations related to CParameterPlugin.

Use CParameterPlugin in CParameterOperate

Reimplemented from CParameterOperate.

Definition at line 213 of file ParameterDesktop.cpp.

Member Data Documentation

m_AdaptWindows

CFrmViewer::ADAPT_WINDOWS CParameterDesktop::m_AdaptWindows

private

Definition at line 115 of file ParameterDesktop.h.

m_bClipboard

bool CParameterDesktop::m_bClipboard

private

Definition at line 103 of file ParameterDesktop.h.

m_bCursorPosition

bool CParameterDesktop::m_bCursorPosition

private

Definition at line 102 of file ParameterDesktop.h.

m_bEnableLocalInputMethod

bool CParameterDesktop::m_bEnableLocalInputMethod

private

Definition at line 106 of file ParameterDesktop.h.

m_bLedState

bool CParameterDesktop::m_bLedState

private

Definition at line 105 of file ParameterDesktop.h.

m_bLocalCursor

bool CParameterDesktop::m_bLocalCursor

private

Definition at line 101 of file ParameterDesktop.h.

m_bOnlyView

bool CParameterDesktop::m_bOnlyView

private

Definition at line 100 of file ParameterDesktop.h.

m_bShowServerName

bool CParameterDesktop::m_bShowServerName

private

Definition at line 99 of file ParameterDesktop.h.

m_bSupportsDesktopResize

bool CParameterDesktop::m_bSupportsDesktopResize

private

Definition at line 104 of file ParameterDesktop.h.

m_dbZoomFactor

double CParameterDesktop::m_dbZoomFactor

private

Definition at line 123 of file ParameterDesktop.h.

m_Net

CParameterNet CParameterDesktop::m_Net

Definition at line 66 of file ParameterDesktop.h.

m_Proxy

CParameterProxy CParameterDesktop::m_Proxy

Definition at line 67 of file ParameterDesktop.h.

m_Record

CParameterRecord CParameterDesktop::m_Record

Definition at line 68 of file ParameterDesktop.h.

m_szServerName

QString CParameterDesktop::m_szServerName

private

Definition at line 98 of file ParameterDesktop.h.

Property Documentation

AdaptWindows

CFrmViewer::ADAPT_WINDOWS CParameterDesktop::AdaptWindows

readwrite

Definition at line 116 of file ParameterDesktop.h.

LocalCursor

bool CParameterDesktop::LocalCursor

readwrite

Definition at line 53 of file ParameterDesktop.h.

Name

QString CParameterDesktop::Name

readwrite

Definition at line 48 of file ParameterDesktop.h.

OnlyView

bool CParameterDesktop::OnlyView

readwrite

Definition at line 52 of file ParameterDesktop.h.

ServerName

QString CParameterDesktop::ServerName

readwrite

Definition at line 49 of file ParameterDesktop.h.

ShowServerName

bool CParameterDesktop::ShowServerName

readwrite

Definition at line 50 of file ParameterDesktop.h.

ZoomFactor

double CParameterDesktop::ZoomFactor

readwrite

Definition at line 124 of file ParameterDesktop.h.

---

The documentation for this class was generated from the following files:

• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterDesktop.h
• /home/runner/work/RabbitRemoteControl/RabbitRemoteControl/Src/ParameterCompone/ParameterDesktop.cpp
